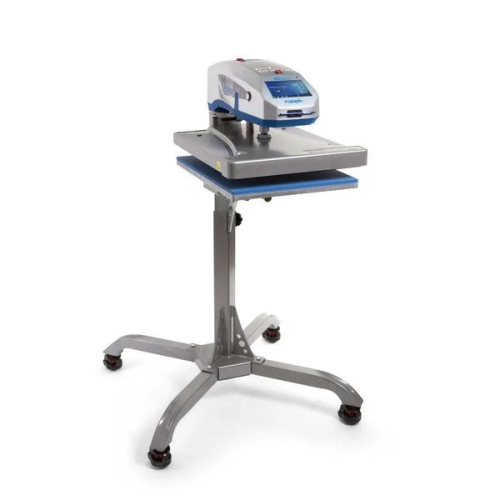

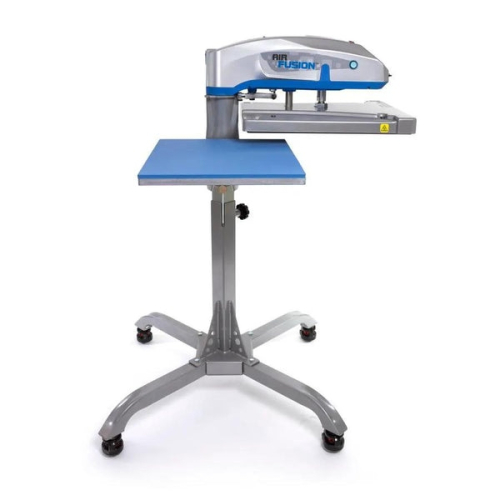

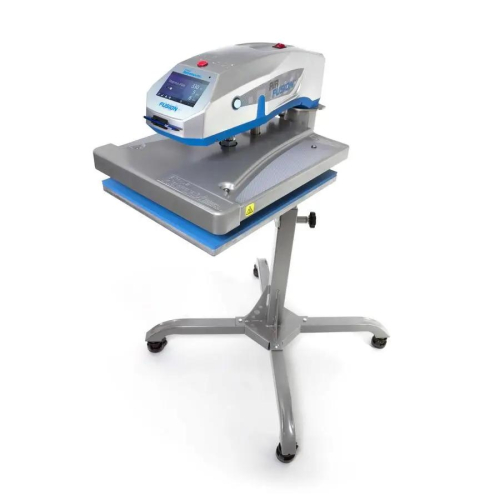

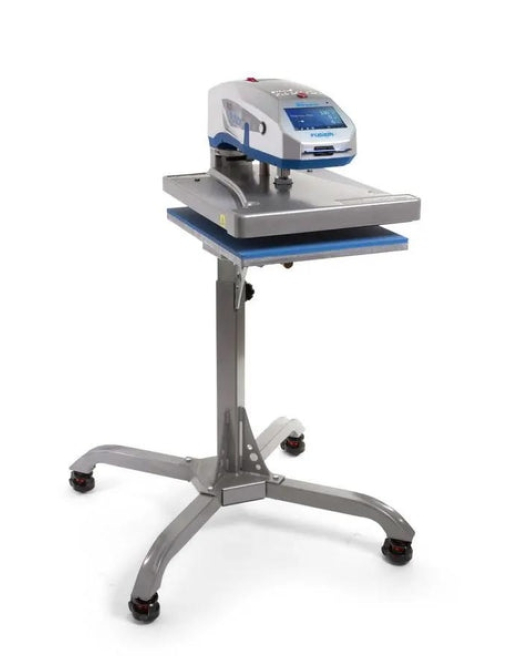

Hotronix Air Fusion IQ Heat Press w/adjustable-height pedestal stand

Key Features
Application	Ideal for high-volume shops, specialty decorators, and Direct-to-Garment (DTG) printing
Heated Platen Size	16" x 20" Upper Heated Platen
Fusion IQ Controller	Troubleshooting and self-diagnostic capabilities
Online Portal	Track performance and production reports remotely
Touchscreen Display	Larger high-resolution screen with enhanced response
Auto-Adjust Pressure	Automatically adjusts to material thickness
Full Threadability	Rotate garments and decorate any area with ease
Operation	Auto-open, auto-swing design with foot pedal
Workspace	Heat-free swing-away operation
Memory Functions	Stores settings, cycle counter, and auto on/off
Software Upgrade Port	Integrated data interface port
Safety Operation	Two-hand push-button activation
Maximum Pressure	120 PSI for high-pressure applications
Quick-Change Platens	Optional, tool-free platen replacement
Preset Programs	Up to 4 pressure and time settings
Framework	Die-pressure cast 365 aluminum corrosion-free construction

Electrical Requirements
120V Configuration	120V, 15 Amps, 1800 Watts
240V Configuration	240V, 15 Amps, 1800 Watts
Circuit Requirement	Dedicated Circuit Breaker Required
Air Compressor	Not Included; Minimum 1/2 HP, 2-Gallon Tank, 120 PSI, 2.3 CFM

Universal Features
Country of Manufacture	Made in the USA
Heating Technology	Cast-In Tubular Heating
Finish	Powder Coated Finish
Certifications	UL, ULC, CE Compliant

Product Details
Actual Weight	150 lbs
Shipping Weight	150 lbs
Shipping Dimensions	48" x 40" x 58"

Warranty
Heating Element	Lifetime Warranty
Framework	5-Year Warranty
Circuit Board	2-Year Warranty
Parts & Labor	1-Year Warranty

Optional Platens
7" Round Platen	Available
6" x 10" Platen	Available
8" x 10" Platen	Available
11" x 15" Platen	Available
