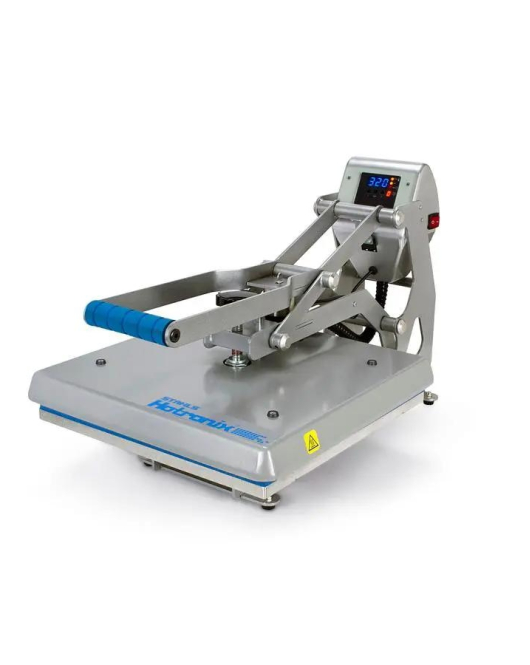

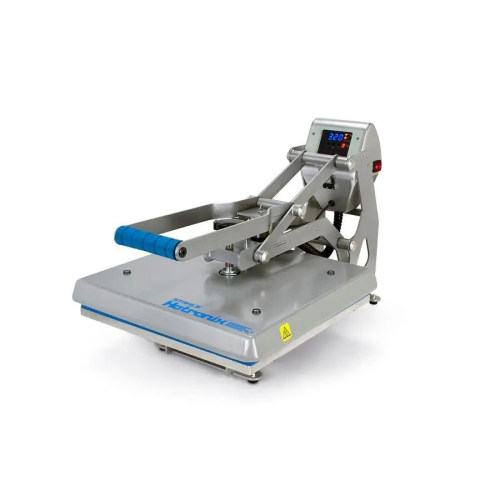

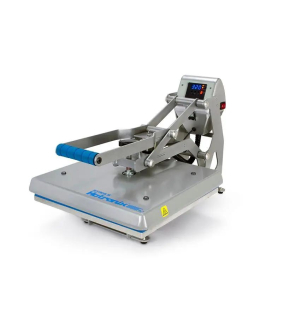

Hotronix Auto Open Clam Heat Press 16in x 16in

The Auto Clam opens automatically when time is up, preventing over-application and scorching, and allowing you to focus on more than one job at once.

Three sizes available 16″ x 20″, 16″ x 16″, 11″ x 15″
Easy-to read digital time, temperature, and pressure display for accurate, consistent printing
Over-the-Center Pressure Adjustment for even, edge-to-edge heat and pressure, regardless of substrate thickness
Wide opening for easy layout
Space-saving clamshell design
Patented magnetic auto-open feature prevents over-application
Locks down easily with patented magnetic assist, causing less fatigue on wrists and shoulders
Twin Timer™ allows user to pre-set individual time settings for two-step application or for pre-heating and application
Optional interchangeable lower platens available
11 x 15 Electrical Options:
120 v; 8.3 amps; 1000 w
240 v; 4.5 amps; 1000 w
16 x 16, 16 x 20 Electrical Options:
120 v; 15 amps; 1800 w
240 v; 7.5 amps; 1800 w
Must have dedicated circuit breaker
Proudly made in the USA

Universal Features
Country of Manufacture	Made in the USA
Heating Technology	Cast-In Tubular Heating
Finish	Powder Coated Finish
Certifications	UL, ULC & CE Compliant

Product Details
Actual Weight	77 lbs (34.9 kg)
Shipping Weight	90 lbs (40.8 kg)
Actual Dimensions	28" x 17" x 17"
Shipping Dimensions	36" x 25" x 21"

Warranty
Heating Element	Lifetime Warranty
Framework	5-Year Warranty
Circuit Board	2-Year Warranty
Parts & Labor	1-Year Warranty

Optional Platens
7" Round Platen	Available
6" x 10" Platen	Available
8" x 10" Platen	Available
11" x 15" Platen	Available
