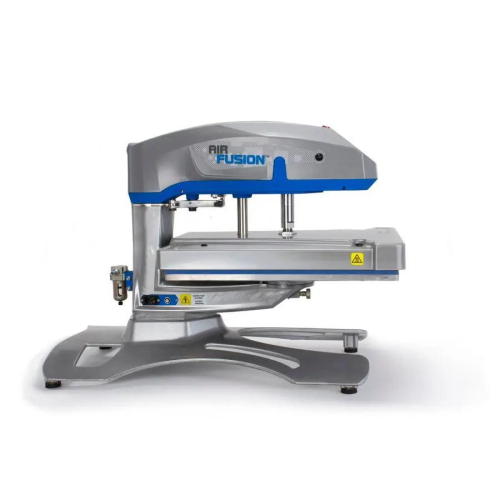

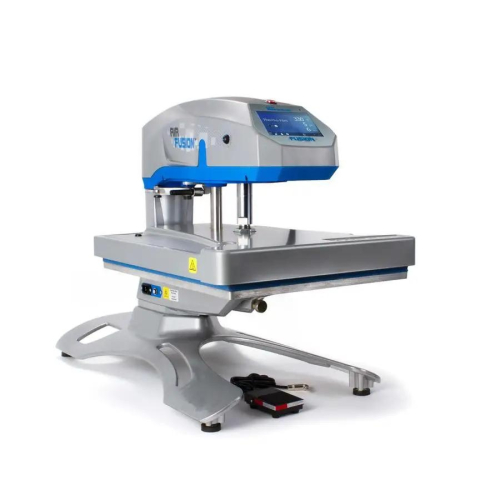

Hotronix Air Fusion IQ Heat Press - Table Top

Key Features
Application	Ideal for high-volume shops, specialty decorators, and Direct-to-Garment (DTG) printing
Heated Platen Size	16" x 20" Upper Heated Platen
Fusion IQ Controller	Advanced troubleshooting and self-diagnostic capabilities
Hotronix Online Portal	Track performance and production reports remotely
Touchscreen Display	Large high-resolution touchscreen with enhanced response
Auto-Adjust Pressure™	Automatically adjusts to material thickness
Full Threadability™	Rotate garments and decorate any area with ease
Operation	Auto-open and auto-swing design with foot pedal
Workspace	Heat-free swing-away operation
Memory Functions	Stores settings, cycle counter, and auto on/off capability
Software Upgrade Port	Integrated data interface port
Safety Features	Two-hand push-button activation
Maximum Pressure	120 PSI for high-pressure applications
Quick-Change Platens	Optional tool-free platen replacement
Preset Programs	Store up to four pressure and time settings
Framework	Die-pressure cast 365 aluminum corrosion-free construction

Electrical Requirements
120V Configuration	120V, 15 Amps, 1800 Watts
240V Configuration	240V, 15 Amps, 1800 Watts
Circuit Requirement	Dedicated Circuit Breaker Required
Air Compressor	Not Included; Minimum 1/2 HP, 2-Gallon Tank, Uses 2.3 CFM

Universal Features
Country of Manufacture	Made in the USA
Heating Technology	Cast-In Tubular Heating
Finish	Powder Coated Finish
Certifications	UL, ULC & CE Compliant

Product Details
Actual Weight	126 lbs
Shipping Weight	180 lbs
Actual Dimensions	34" x 18" x 24"
Shipping Dimensions	37" x 24" x 24"

Warranty
Heating Element	Lifetime Warranty
Framework	5-Year Warranty
Circuit Board	2-Year Warranty
Parts & Labor	1-Year Warranty

Optional Platens
7" Round Platen	Available
6" x 10" Platen	Available
8" x 10" Platen	Available
11" x 15" Platen	Available

Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder

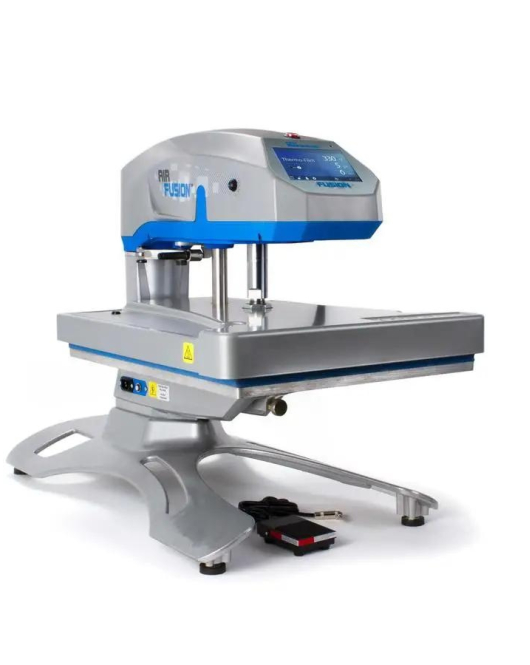

Hotronix Air Fusion IQ Heat Press - Table Top
