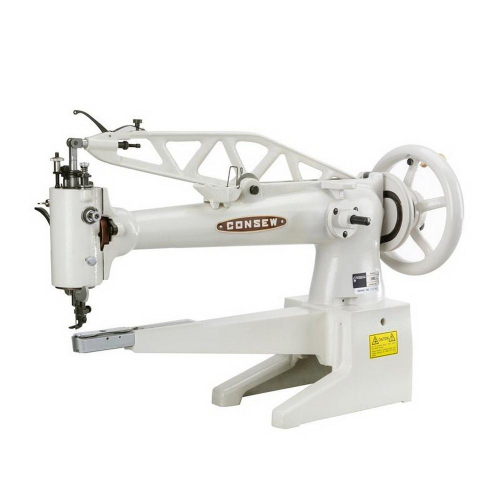

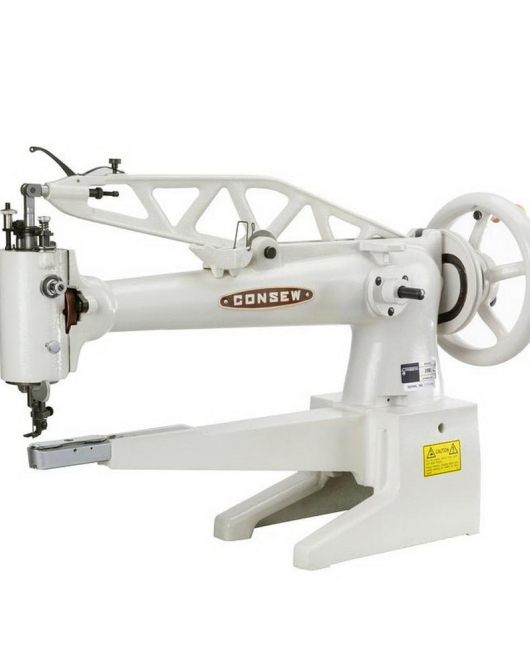

Oscillating Shuttle, Extra Small Cylinder Bed, Universal Upper Feed, Double Ended Needle Plate

• Repairing leather materials and shoe uppers

Features

• Extra Small Cylinder Bed: Allows for precise handling of small and delicate work
• Oscillating Shuttle: Ensures smooth and efficient stitching
• Universal Upper Feed: Enables stitching in any direction without needing to turn the work

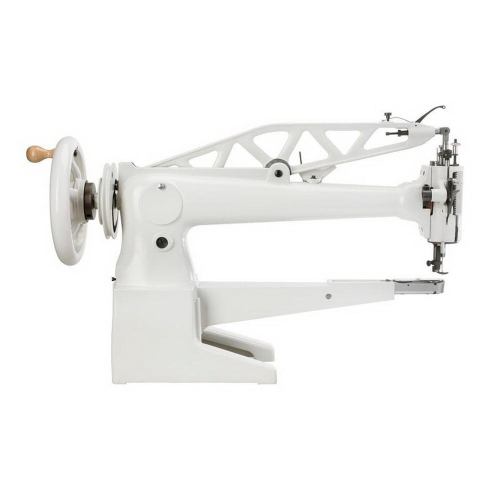

• Handwheel Mounting: Can be mounted on the front or right end of the machine for versatile operation
• Wheel Pulley "V" Groove: Provides efficient motor drive
• Double Ended Needle Plate: Accommodates various needle sizes with different hole sizes at the back end

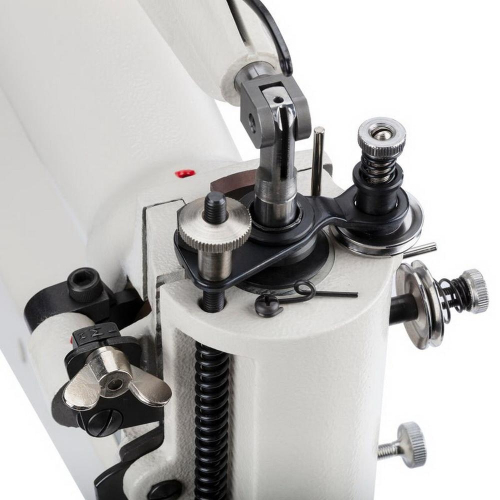

• Adjustable Thread Take-up Lever: Allows fine control over thread tension and positioning
• Adjustable Presser Foot Pressure: Offers flexibility in managing material thickness

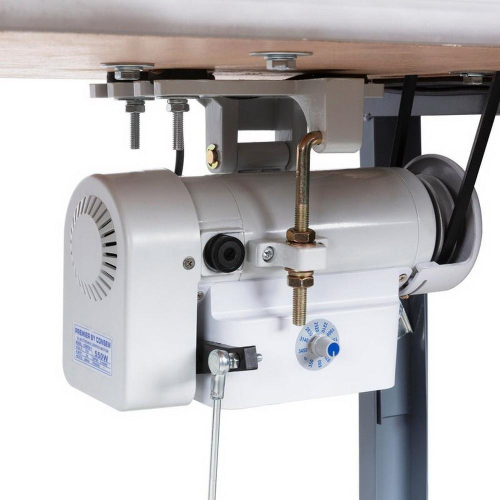

• Multiple Drive Options: Can be driven by foot treadle, hand crank, or electric motor

Specifications

• Number of Needles: 1 (Single)
• Feeding Mechanism: Universal
• Workspace: Long Arm
• Standard or Full Function: Standard Functions
• Speed, Max (S.P.M.): 500
• Clearance Under Presser Foot: 13/32 s.p.i. (10.5mm)
• Stitch Length: 3.5 s.p.i. (1-7mm)
• Hook Size: Large
• Work Space: 18" (460mm)
• Width of Cylinder Bed: 1 5/32" (27.8mm)
• Needle: 135X17 (newer machines) or 29X3 (older machines)
• Depth of Cylinder Bed: 1 3/32" (29.4mm)
• Net Weight: 77 lbs. (35kgs)
