With: Compound Feed and Walking Foot, Centra-Lube Semi-Automatic Lubrication System, Large Vertical Axis Hooks and Bobbins, Disengageable Right and Left Needle Bars, Reverse Feed, Safety Clutch

Applications

• For medium to heavy-duty materials such as leather, canvas, vinyls, and various laminated and coated materials
• Designed for sewing operations that require decorative or functional angular stitching such as collars, lapels, pockets, pocket flaps, etc.
• Used for stitching men's, ladies', and children's coats, ski wear, jeans, handbags, and travelware accessories
• General parallel/two-needle stitching
• Top stitching with split bar for angular sewing turns

Features

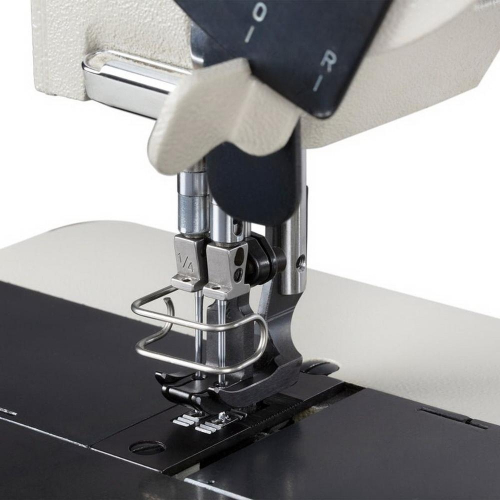

• Compound feed, walking foot mechanism ensures perfect feeding of sewing material

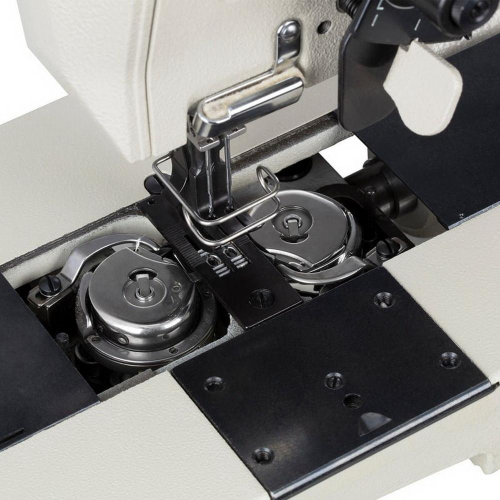

• Large hooks and bobbin cases with their own thread take-up mechanism assure uniform and perfect stitching with minimal bobbin changes

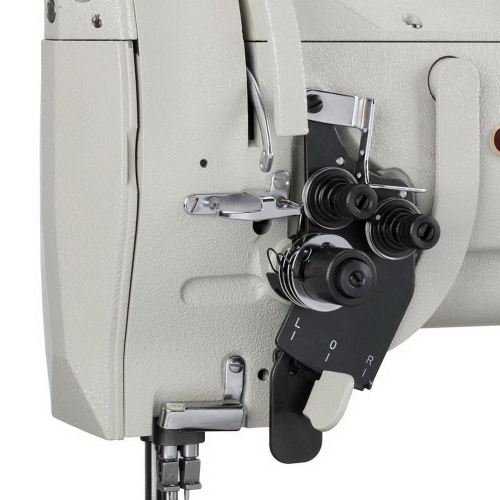

• Easy operation of disengageable right and left needle bars using a finger-touch lever
• Centra-Lube® semi-automatic lubrication system
• Automatic hook lubrication
• Oil-fed take-up
• Stitches per minute: 2200
• Reverse stitching
• Various gauge sets available
• Safety clutch protects the hooks from damage
• Simple adjustment allows raising and lowering of the center foot for sewing different thicknesses of material

Specifications

• Number of Needles: 2 (Double)
• Feeding Mechanism: Walking Foot
• Workspace: Standard Workspace
• Standard or Full Function: Standard Functions
• Speed, Max (S.P.M.): 2200
• Clearance Under Presser Foot: 11/32" (8.5mm)
• Stitch Length: 4 s.p.i. (6.5mm)
• Work Space: 10" (258mm)
• Needle: 135 x 17
• Bobbin: Metal 10408 Pre-Wound U
• Bed Size: 7" x 20 3/8" (177mm x 518mm)
• Stitch Type: 301
• Needle Bar Stroke: 1 1/4" (32mm)
• Hook: 16407
• Needle Distances: 1/8" (3.2mm) - 1" (25.4mm) (1/4" is standard)
