DISCOVER THE POWER OF THE ARRAY

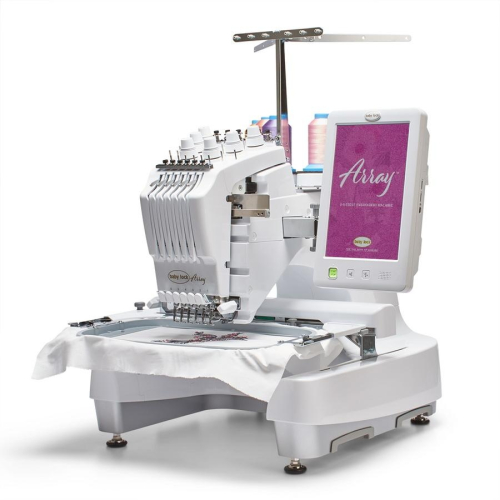

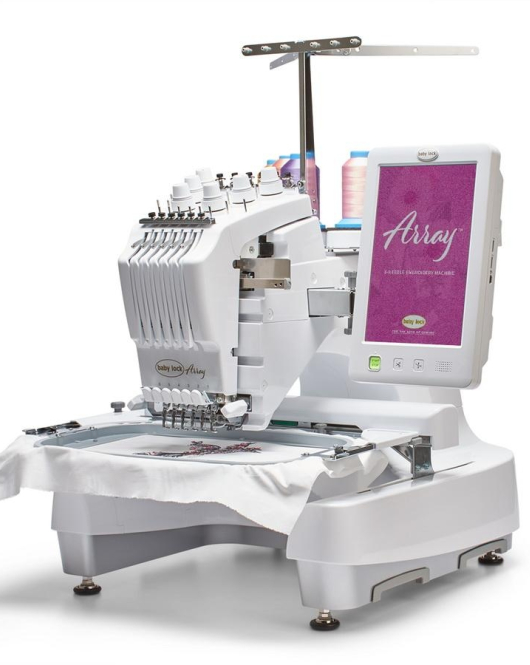

Harness your fearless creativity with the Baby Lock Array multi-needle embroidery machine. Use a brilliant high definition touchscreen as the control center for all of your embroidery masterpieces. Make quick changes to designs and start embroidering right away. Create your own designs or use any of the 126 built-in designs. This powerful six-needle machine includes a variety of features, including a crosshair positioning laser, that will make your wildest creative dreams become a reality.

The Baby Lock Array has all the features you want – a big screen, the ability to edit, combine, and resize designs, and an easy way to position designs. It’s easy to use for a beginner and advanced enough for an expert. Get started making what you imagine!

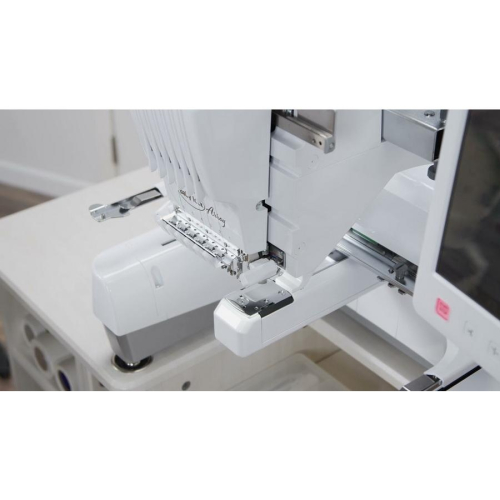

FREE ARM EMBROIDERY

Easily embroider anything you can think of! Tubular items like sleeves, pant legs, bags, and more are no problem with the free arm

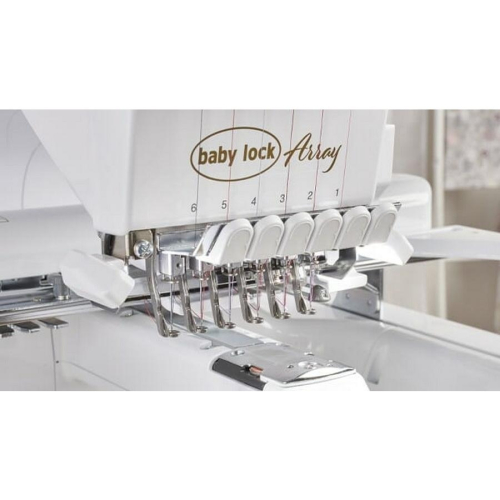

SIX EFFICIENT NEEDLES

With six needles, you’ll love how quickly you can embroider large, multi-colored designs; and you can finish projects without excessive thread changes between jobs.

You will save time because you can embroider more colors and stitches before you have to rethread.

7-7/8 X 11-3/4 EMBROIDERY FIELD

Embroider on a massive 7-7/8" x 11-3/4" space, giving you more room than ever before!

Embroider in hoops as small as 1.5" x 2.25" or as large as 7.85x11.75" so you can pick the right sized hoop for the job.

EMBROIDERY CROSSHAIR POSITIONING LASER

Use the crosshair positioning laser to preview the position of your embroidery design. Then adjust the position and angle for precise alignment. Your embroidery will be perfectly placed every time.

Stop rehooping to get your project perfectly centered. The crosshair laser is an easy way to adjust the design placement to where you need it to stitch based on what your project needs.

IQ INTUITION™ MONITORING APP

Keep track of your project’s progress with this convenient feature that alerts your phone when the bobbin needs to be changed, if a thread breaks, if a thread needs to be changed and when stitching is done.

Increase your productivity with this app. Track stitching progress or get an alert you when a bobbins needs changing, a thread breaks, a thread needs to change, or your stitching is complete.

WIRELESS CAPABILITY

Wirelessly send designs to your Array by installing the free Design Database Transfer Software on your personal computer.

Using optional Palette 11 software, easily send designs to your computer for editing or to machine for stitching. Wirelessly download and install software updates for the machine.

INTUITIVE COLOR MANAGEMENT

Use Color Visualizer to effortlessly find a variety of color schemes for your projects. Select from random, gradient, vivid, or soft effects.

Reassign colors in your design and see the changes on screen, or use the Color Visualizer to see different color options for your design, either completely random or based on a few predefined colors.

More Features

• 50 font styles
• Unlimited designs can be loaded with a USB or wirelessly
• 24 Built-in tutorial videos
• Built-in memory (10MB)
• Bobbin system: front loading, vertical rotary hook
• Uses pre-wound bobbins (Class “L”)
• Push button, automatic needle threader for all six needles
• 2 LED lights to illuminate work area
• Large Full Color touch screen Upper thread breakage and low bobbin sensors
• Manual tension control for each thread
• Built in thread color conversions for popular brands
• Automatic thread trimmer (upper and lower)
• Start/stop button with lock feature
• Onscreen speed control while stitching
• Change screen and thumbnail background color
• Embroidery shortcut key
• Change embroidery position using speed keys
• Needle bar/frame move key repositions the hoop for easy access
• Advanced On Screen editing features

Included Accessories

• Accessory case
• Instruction guides
• Embroidery Design Guide
• Embroidery Frame Arms x 2
• Embroidery frames:
• 200mm x 300mm (7-7/8 X 11-3/4)
• 130mm x 180mm (7 X 5)
• 100mm x 100mm (3-7/8 X 3-7/8)
• 60mm x 40mm (2-1/4 X 1-1/2)
• Embroidery Grid sheets:
• 200mm x 300mm (7-7/8 X 11-3/4)
• 130mm x 180mm (7 X 5)
• 100mm x 100mm (3-7/8 X 3-7/8)
• 60mm x 40mm (2-1/4 X 1-1/2)
• Needle set x 2
• Prewound bobbin x 6
• Spool net x 6
• Spool mat x 6
• Spool cap x 6
• Touch pen
• Needle changing and threading tool
• Needle plate cover
• Oiler
• Cleaning Brush
• Screwdrivers x 4
• Wrench
• 60-Day Trial of Online Sewing Classes
• Plus more
