This series high speed lockstitch machine uses a link type feeding mechanism, link thread take up and rotating hook to form clean, crisp stitches. Bevel gears that drive the arm shaft and hook in combination with the dial operated stitch regulator make it easy to adjust and maintain the desired stitch length regardless of speed or stitching direction. The different available subclasses allow for a wide range of different materials to be sewn without difficulty.

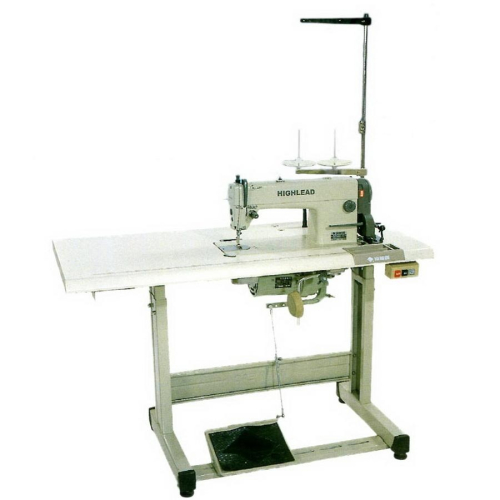

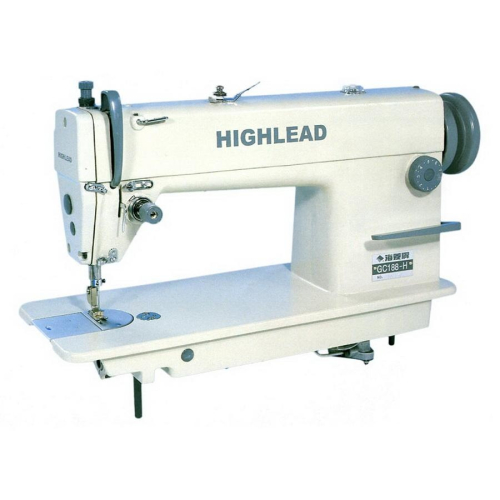

Highlead GC188 Series Industrial Sewing Machine (With Table & Motor)
High speed single needle lockstitch industrial sewing machine designed for a wide range of materials.
Equipped with link-type feeding mechanism, rotating hook, and smooth stitch performance.
Machine Features
- High speed single needle lockstitch machine
- Link type feeding mechanism
- Rotating hook system for stable stitching
- Easy stitch length adjustment dial
- Smooth and quiet operation
- Suitable for light to medium materials
- Available with clutch motor or servo motor
- Comes with assembled table and stand
Machine Specifications
| Machine Type | Single Needle Lockstitch |
| Max Sewing Speed | Up to 5000 RPM |
| Stitch Length | 0 – 5 mm |
| Needle Bar Stroke | 31.8 mm |
| Presser Foot Lift (Hand) | 5.5 mm |
| Presser Foot Lift (Knee) | 13 mm |
| Needle | DB x 1 (#9 – #16) |
| Feed Dog | 3 Rows of Teeth |
| Hook | Auto Lubricated Rotary Hook |
| Lubrication | Automatic |
| Motor | 370W Clutch Motor / Servo Motor |
What's Included
- Machine Head (Highlead GC188 Series)
- Industrial Table Top
- Stand
- Motor (Clutch / Servo depending on option)
- Belt
- Accessories & Tools
- Instruction Manual
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder
Highlead GC188 Series Industrial Sewing Machines with Assembled Table and Servo Motor
- Product Code: GC188-M
This series high speed lockstitch machine uses a link type feeding mechanism, link thread take up and rotating hook to form clean, crisp stitches. Bevel gears that drive the arm shaft and hook in combination with the dial operated stitch regulator make it easy to adjust and maintain the desired stitch length regardless of speed or stitching direction. The different available subclasses allow for a wide range of different materials to be sewn without difficulty.
Highlead GC188 Series Industrial Sewing Machine (With Table & Motor)
High speed single needle lockstitch industrial sewing machine designed for a wide range of materials.
Equipped with link-type feeding mechanism, rotating hook, and smooth stitch performance.
Machine Features
- High speed single needle lockstitch machine
- Link type feeding mechanism
- Rotating hook system for stable stitching
- Easy stitch length adjustment dial
- Smooth and quiet operation
- Suitable for light to medium materials
- Available with clutch motor or servo motor
- Comes with assembled table and stand
Machine Specifications
| Machine Type | Single Needle Lockstitch |
| Max Sewing Speed | Up to 5000 RPM |
| Stitch Length | 0 – 5 mm |
| Needle Bar Stroke | 31.8 mm |
| Presser Foot Lift (Hand) | 5.5 mm |
| Presser Foot Lift (Knee) | 13 mm |
| Needle | DB x 1 (#9 – #16) |
| Feed Dog | 3 Rows of Teeth |
| Hook | Auto Lubricated Rotary Hook |
| Lubrication | Automatic |
| Motor | 370W Clutch Motor / Servo Motor |
What's Included
- Machine Head (Highlead GC188 Series)
- Industrial Table Top
- Stand
- Motor (Clutch / Servo depending on option)
- Belt
- Accessories & Tools
- Instruction Manual
- Brand: Highlead
- Viewed: 37
- Availability: In Stock
$600.00
