Double-capacity Hook
With its reliable feed and consistent seam quality, the Juki DNU-1541S sewing machine for sale responds outstandingly well to heavy materials.

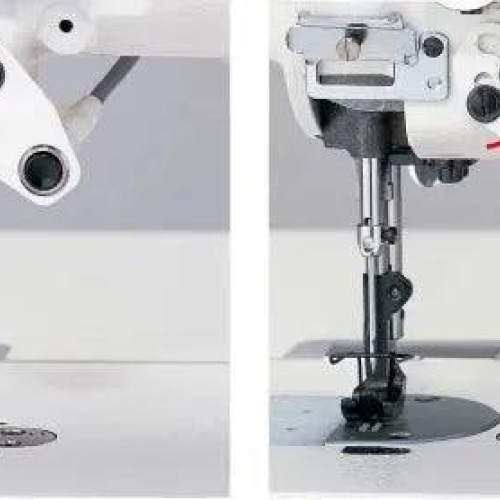

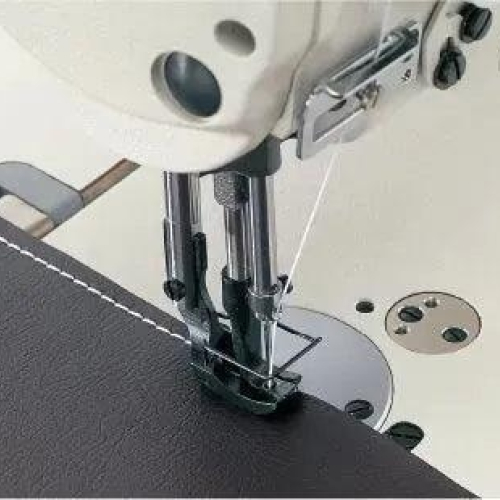

With its larger needlebar stroke, higher presser foot lift, and newly adopted double-tension mechanism, the Juki DNU-1541S for sale offers excellent sewing capabilities and responsiveness. The alternating vertical movements of the walking foot and presser foot are as large as 6.5mm. In addition, the ratio between alternating vertical movements of the walking foot and presser foot remains unchanged even when the material thickness changes. Thanks to this feature and the adoption of a new rectangular feed method that prevents needle fraying, the Juki DNU-1541S industrial sewing machine handles multi-layered materials with consistent stitch pitch while preventing stitch gathering.
Key Features
Fully Assembled Table and a Servo Motor
This Package includes a Fully Assembled Table and a Servo Motor.
High-Speed Performance
The Juki DNU-1541S machine delivers increased productivity at sewing speeds as high as 2,500 stitches per minute.
Safety Mechanism
If your machine gets jammed, it will automatically disengage the motor.
| Max. Sewing Speed | 2,500 Stitches per Minute |
|---|---|
| Max. Stitch Length | 9 mm (forward / backward) |
| Needle Bar Stroke | 36 mm |
| Presser Foot Lift (Hand) | 9 mm |
| Presser Foot Lift (Knee) | 16 mm |
| Thread Take-Up | Slide Type |
| Alternating Vertical Movement | 2.5 ~ 6.5 mm |
| Hook | Horizontal-Axis Full-Rotary Double-Capacity Hook |
| Needle | 135x17 (Nm125 ~ Nm180) |
| Thread | #30 ~ #5, B46 ~ B138, Nm 60/3 ~ 15/3 |
| Pitch Adjustment | Dial Type |
| Lubrication | Centralized Oil Wick Lubrication (Hook: Automatic) |
| Lubricating Oil | Juki New Defrix Oil No.2 (ISO VG32 Equivalent) |
| Working Space | 264 mm (Needle to Arm) |
| Bed Size | 477 x 178 mm |
| Motor Output | 550 W |
| Machine Head Weight | 36.5 kg |
Motor Options
- Clutch Motor: Fixed speed (1725 – 3450 RPM depending on machine type)
- Servo Motor: Adjustable speed & silent when idle
Advantages of Servo Motor
- Up to 90% more energy efficient
- Approximately 1/3 lighter than clutch motors
- Reversible rotation via switch
- No wear parts or frequent adjustments
- Consistent speed regardless of pedal pressure
Most users find machines like the Juki DNU-1541S easier to control with a servo motor due to precise speed adjustment. This is especially useful for beginners and for projects requiring slower, controlled stitching.
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder

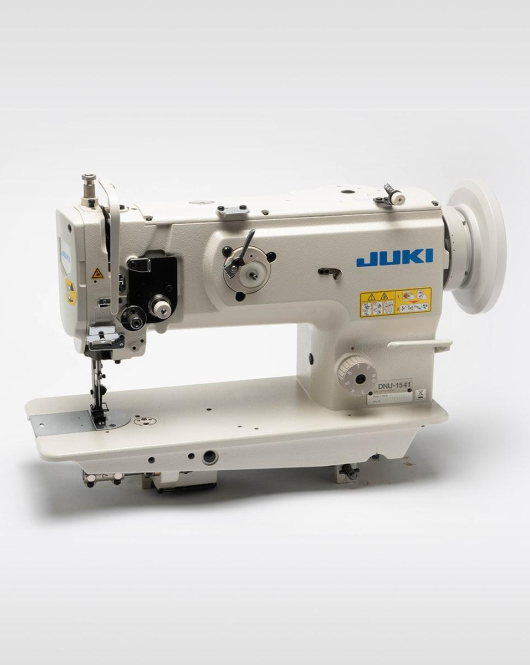

Consew CN897VF-1 Flat-Bed 2/3 Needle 4/5 Thread Coverstitch Machine with Assembled Table and Servo Motor
- Product Code: DNU-1541S
Double-capacity Hook
With its reliable feed and consistent seam quality, the Juki DNU-1541S sewing machine for sale responds outstandingly well to heavy materials.
With its larger needlebar stroke, higher presser foot lift, and newly adopted double-tension mechanism, the Juki DNU-1541S for sale offers excellent sewing capabilities and responsiveness. The alternating vertical movements of the walking foot and presser foot are as large as 6.5mm. In addition, the ratio between alternating vertical movements of the walking foot and presser foot remains unchanged even when the material thickness changes. Thanks to this feature and the adoption of a new rectangular feed method that prevents needle fraying, the Juki DNU-1541S industrial sewing machine handles multi-layered materials with consistent stitch pitch while preventing stitch gathering.
Key Features
Fully Assembled Table and a Servo Motor
This Package includes a Fully Assembled Table and a Servo Motor.
High-Speed Performance
The Juki DNU-1541S machine delivers increased productivity at sewing speeds as high as 2,500 stitches per minute.
Safety Mechanism
If your machine gets jammed, it will automatically disengage the motor.
| Max. Sewing Speed | 2,500 Stitches per Minute |
|---|---|
| Max. Stitch Length | 9 mm (forward / backward) |
| Needle Bar Stroke | 36 mm |
| Presser Foot Lift (Hand) | 9 mm |
| Presser Foot Lift (Knee) | 16 mm |
| Thread Take-Up | Slide Type |
| Alternating Vertical Movement | 2.5 ~ 6.5 mm |
| Hook | Horizontal-Axis Full-Rotary Double-Capacity Hook |
| Needle | 135x17 (Nm125 ~ Nm180) |
| Thread | #30 ~ #5, B46 ~ B138, Nm 60/3 ~ 15/3 |
| Pitch Adjustment | Dial Type |
| Lubrication | Centralized Oil Wick Lubrication (Hook: Automatic) |
| Lubricating Oil | Juki New Defrix Oil No.2 (ISO VG32 Equivalent) |
| Working Space | 264 mm (Needle to Arm) |
| Bed Size | 477 x 178 mm |
| Motor Output | 550 W |
| Machine Head Weight | 36.5 kg |
Motor Options
- Clutch Motor: Fixed speed (1725 – 3450 RPM depending on machine type)
- Servo Motor: Adjustable speed & silent when idle
Advantages of Servo Motor
- Up to 90% more energy efficient
- Approximately 1/3 lighter than clutch motors
- Reversible rotation via switch
- No wear parts or frequent adjustments
- Consistent speed regardless of pedal pressure
Most users find machines like the Juki DNU-1541S easier to control with a servo motor due to precise speed adjustment. This is especially useful for beginners and for projects requiring slower, controlled stitching.
- Brand: Juki
- Viewed: 34
- Availability: In Stock
$1,550.00
