With: Oscillating Shuttle, Extra Small Cylinder Bed, Universal Upper Feed, Double Ended Needle Plate

Applications

• Repairing leather materials and shoe uppers

Features

• Extra Small Cylinder Bed: Ideal for precise and detailed work
• Oscillating Shuttle: Promotes smooth and efficient stitching
• Universal Upper Feed: Allows stitching in any direction without needing to turn the work
• Handwheel Mounting: Can be positioned on the front or right end of the machine for flexibility
• Wheel Pulley "V" Groove: Facilitates motor drive efficiency

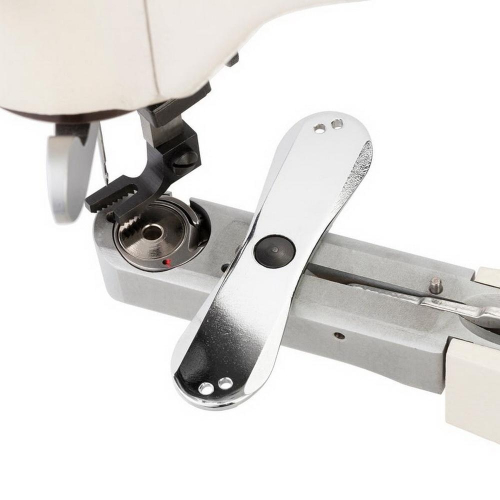

• Double Ended Needle Plate: Accommodates various needle sizes with holes at the back end
• Adjustable Thread Take-up Lever: Enables fine control over thread tension
• Adjustable Presser Foot Pressure: Customizable to handle different material thicknesses
• Drive Options: Machine can be driven by foot treadle, hand crank, or electric motor

Specifications

• Number of Needles: 1 (Single)
• Feeding Mechanism: Universal
• Workspace: Standard Workspace
• Standard or Full Function: Standard Functions
• Speed, Max (S.P.M.): 500
• Clearance Under Presser Foot: 13/32 s.p.i. (10.5mm)
• Stitch Length: 3.5 s.p.i. (1-7mm)
• Hook Size: Large
• Work Space: 12" (310mm)
• Width of Cylinder Bed: 1 5/32" (27.8mm)
• Needle: 29X3 (older machines) or 135X17 (newer machines)
• Depth of Cylinder Bed: 1 3/32" (29.4mm)
• Net Weight: 62 lbs. (28kgs)
