Juki industrial machine heads are packed in a secured box or crate and will be shipped under the assembled table on a skid or pallet. the customer is responsible for installing the machine head into the table, connecting the motor belt/belt guard and assembling the thread tree using the included hardware. The only exception to this would be the LK-1900B which ships completely assembled due to the more difficult set up.

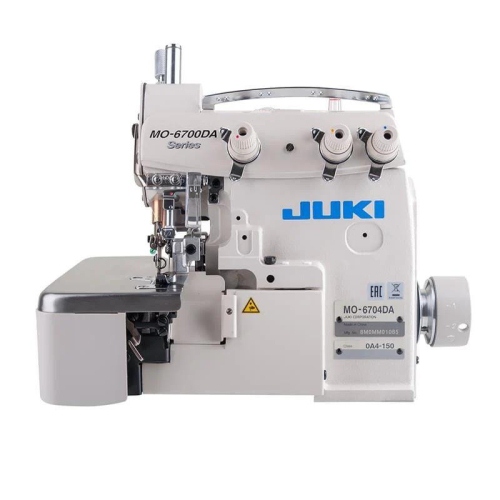

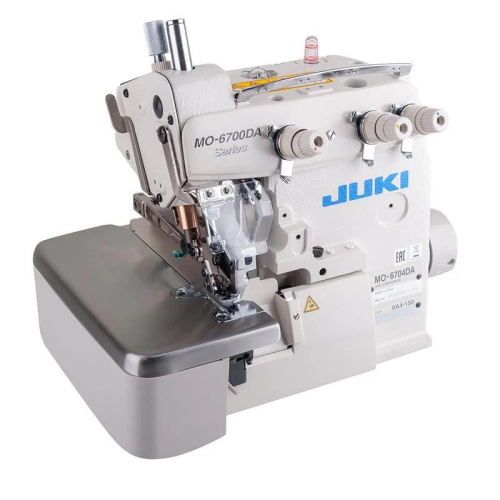

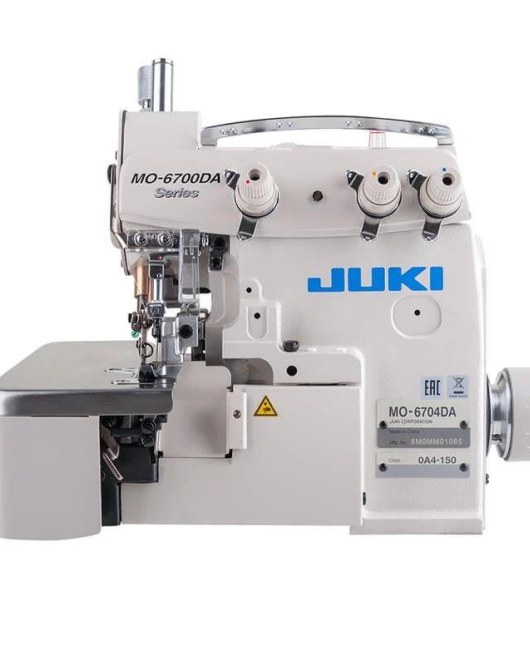

The MO-6700DA Series responds to various kinds of sewing materials and processes, producing delicate and beautiful soft-to-the-touch seams while further reducing operating noise as well as increasing durability. This is a highly advanced cost-effective machine.

Key Features

Table & Servo Motor

This Package includes a Fully Assembled Table and a Servo Motor.

7,000 Stitches per minute

The machine ensures both beautiful and upgraded seam quality at higher speeds.

Since the machine comes with a needle-thread take-up mechanism as well as a looper thread take-up mechanism, to offer upgraded responsiveness from light- to heavy-weight materials with a lower applied tension, it achieves well-tensed soft-feeling seams that flexibly correspond to the elasticity of the material at the maximum sewing speed of 7,000sti/min.

Interchangeable Parts

Devices intended for conventional JUKI machines are also interchangeable.

Gauges and devices you have used with your existing JUKI machines are also interchangeable with no additional machining. This eliminates both the waste of resources and unwanted extra costs.

The machine has been developed with the intention of providing an extended service life

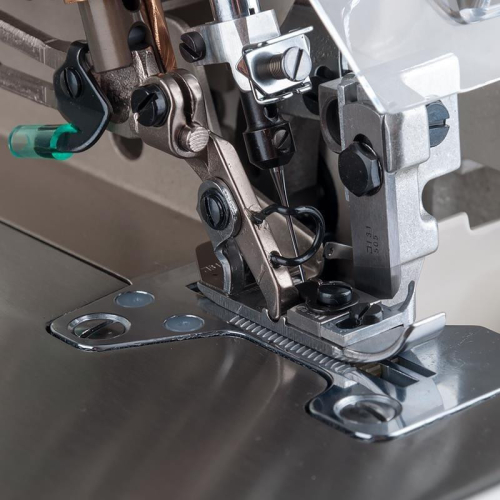

The machine incorporates various mechanisms as standard, such as a differential-feed micro-adjustment mechanism and an external adjustment mechanism for adjusting the feed dog inclination as well as increasing the differential feed ratio, which can be easily adjusted to finish seams that perfectly match the material to be used. Comfortable operation is all but guaranteed, by a wider area around the needle entry, the adoption as standard of a micro-lifter feature that offers improved responsiveness to materials and provides the operator with upgraded operability, and by the reduction of operating noise and vibration, which has been achieved by designing an optimally balanced machine.

Further increased reliability

The newly adopted upper and lower needle bar bushings of the needle bar mechanism improve both the durability and reliability of the needle bar unit. The machine comes standard with a cartridge type oil filter and cooling fan for further improved reliability and durability.
