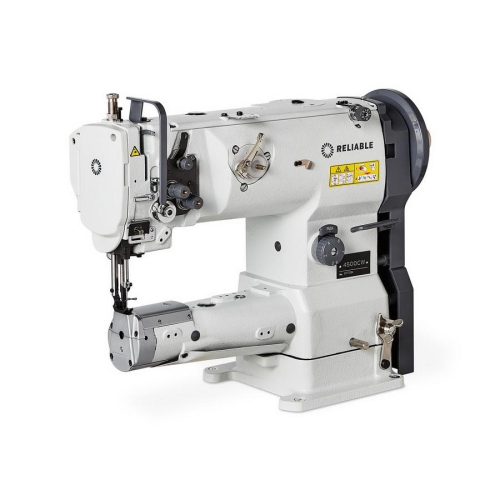

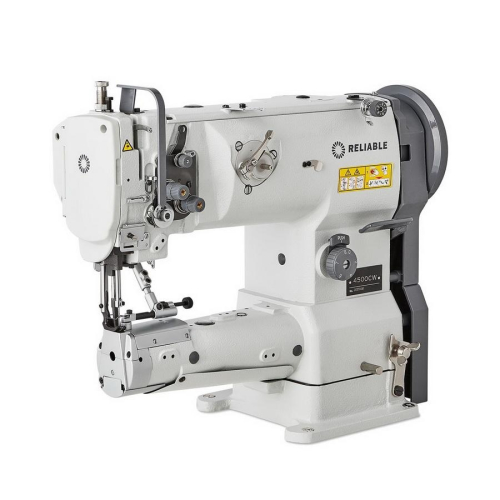

The 4500CW is our new flagship cylinder walking foot, compound feed sewing machine. Whether you’re sewing cushions, bags, heavy-canvas, or a variety of other heavy materials, the 4500CW is built tough. Equipped with a large take-up mechanism with dual tension adjustments and a drop-in bobbin for easy access. We’ve added a synchronizer for the SewQuiet 6000SM motor to make corner stitching easier, a safety clutch mechanism, and a built-in bobbin winder.
For sewing leather, upholstery, canvas, and synthetics, the 4500CW with vibrating binder (to eliminate the “roping” effect) offers the whole package. Low noise and vibration design, outstanding build quality and reliability and the industries #1 DC servomotor.
Key Features
HORIZONTAL BOBBIN LOAD
The 4500CW’s drop-in horizontal bobbin load allows for a smoother, efficient sewing experience.
SEW WITH EASE
The 4500CW has ability to sew medium to heavy weight fabrics with ease.
AUTOMATIC LUBRICATION
The perfect add on light ($99.00 retail value) is included at no extra charge for the 4500CW making the Reliable lockstitch walking foot sewing machine both a great machine and a great value.
ROLL GUIDE
A perfect straight edge is a good thing. The 4500CW is also available with ” roll guide to help create the perfect straight stitch.
SYNCHRONIZER
The 4500CW includes a synchronizer for ease and functionality. Time saving, the synchronizer can position up or down, and is great for corner stitching.
SEWQUIET SERVOMOTOR
Our SewQuiet 12 coil DC servomotor is the powerhouse behind every 6000SM, providing revolutions up to 6000RPM.
AUTOMATIC BOBBIN WINDER
For added convenience, the bobbin winder on the 4500CW is built-in to the front of the machine head.
STITCH DIAL & REVERSE LEVER
The 4500CW has a stitch dial, providing adjustments (0-10 mm) for the stitch's length and a convenient reverse lever for making the perfect back tack.
UBERLIGHT FLEX LED LIGHT INCLUDED
The perfect add on light is included at no extra charge for the 4500CW making it both, a great sewing machine, and a great value.
Specifications
- MAXIMUM SEWING SPEED: 2,500 RPM
- STITCH LENGTH: 0 – 0.39”, 0 – 10 mm
- NEEDLE BAR STROKE: 1.31”, 33.4 mm
- PRESSURE FOOT LIFT: By hand 0.33”, By pedal 0.63”, By hand 8.5 mm, By pedal 16 mm
- NEEDLE SYSTEM: #135 x 17
- THREAD TAKE UP STROKE: 2.42”, 61.4 mm
- DIAMETER OF BED SIZE: 2.75”, 70 mm
- HOOK TYPE: Rotary – auto lubricated
- LUBRICATION: Manual
- STITCH DIAL REGULATOR: Yes
- REVERSE LEVER: Yes
- WARRANTY: Limited 1 year

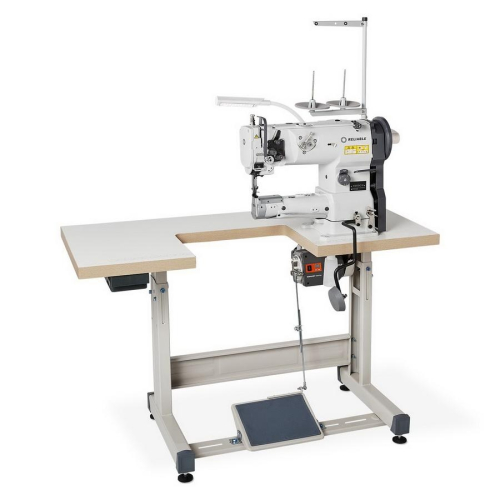

Superior Stand Included
Superior Stand
Others skimp on the stand components, we don’t. We use only 100% plywood in our tabletops (not cheap particle board) and our legs are made from heavy-duty 3/32" steel.
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder

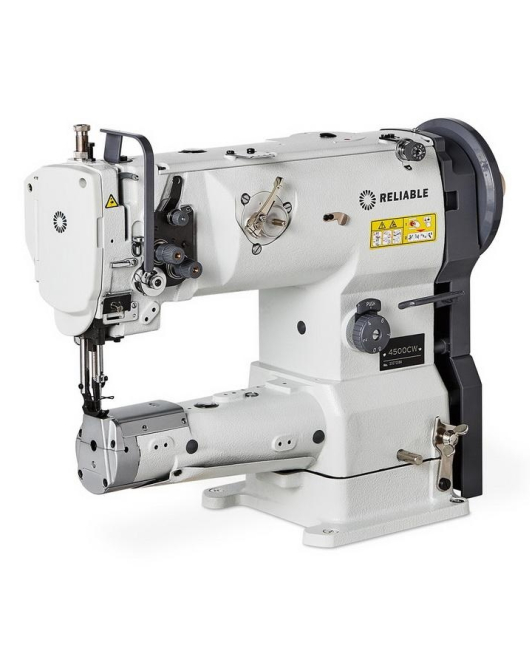

Reliable Cylinder Bed Lockstitch Walking Foot Sewing Machine
- Product Code: 4500CW
The 4500CW is our new flagship cylinder walking foot, compound feed sewing machine. Whether you’re sewing cushions, bags, heavy-canvas, or a variety of other heavy materials, the 4500CW is built tough. Equipped with a large take-up mechanism with dual tension adjustments and a drop-in bobbin for easy access. We’ve added a synchronizer for the SewQuiet 6000SM motor to make corner stitching easier, a safety clutch mechanism, and a built-in bobbin winder.
For sewing leather, upholstery, canvas, and synthetics, the 4500CW with vibrating binder (to eliminate the “roping” effect) offers the whole package. Low noise and vibration design, outstanding build quality and reliability and the industries #1 DC servomotor.
Key Features
HORIZONTAL BOBBIN LOAD
The 4500CW’s drop-in horizontal bobbin load allows for a smoother, efficient sewing experience.
SEW WITH EASE
The 4500CW has ability to sew medium to heavy weight fabrics with ease.
AUTOMATIC LUBRICATION
The perfect add on light ($99.00 retail value) is included at no extra charge for the 4500CW making the Reliable lockstitch walking foot sewing machine both a great machine and a great value.
ROLL GUIDE
A perfect straight edge is a good thing. The 4500CW is also available with ” roll guide to help create the perfect straight stitch.
SYNCHRONIZER
The 4500CW includes a synchronizer for ease and functionality. Time saving, the synchronizer can position up or down, and is great for corner stitching.
SEWQUIET SERVOMOTOR
Our SewQuiet 12 coil DC servomotor is the powerhouse behind every 6000SM, providing revolutions up to 6000RPM.
AUTOMATIC BOBBIN WINDER
For added convenience, the bobbin winder on the 4500CW is built-in to the front of the machine head.
STITCH DIAL & REVERSE LEVER
The 4500CW has a stitch dial, providing adjustments (0-10 mm) for the stitch's length and a convenient reverse lever for making the perfect back tack.
UBERLIGHT FLEX LED LIGHT INCLUDED
The perfect add on light is included at no extra charge for the 4500CW making it both, a great sewing machine, and a great value.
Specifications
- MAXIMUM SEWING SPEED: 2,500 RPM
- STITCH LENGTH: 0 – 0.39”, 0 – 10 mm
- NEEDLE BAR STROKE: 1.31”, 33.4 mm
- PRESSURE FOOT LIFT: By hand 0.33”, By pedal 0.63”, By hand 8.5 mm, By pedal 16 mm
- NEEDLE SYSTEM: #135 x 17
- THREAD TAKE UP STROKE: 2.42”, 61.4 mm
- DIAMETER OF BED SIZE: 2.75”, 70 mm
- HOOK TYPE: Rotary – auto lubricated
- LUBRICATION: Manual
- STITCH DIAL REGULATOR: Yes
- REVERSE LEVER: Yes
- WARRANTY: Limited 1 year
Superior Stand Included
Superior Stand
Others skimp on the stand components, we don’t. We use only 100% plywood in our tabletops (not cheap particle board) and our legs are made from heavy-duty 3/32" steel.
- Brand: Reliable
- Viewed: 22
- Availability: In Stock
$2,399.00
