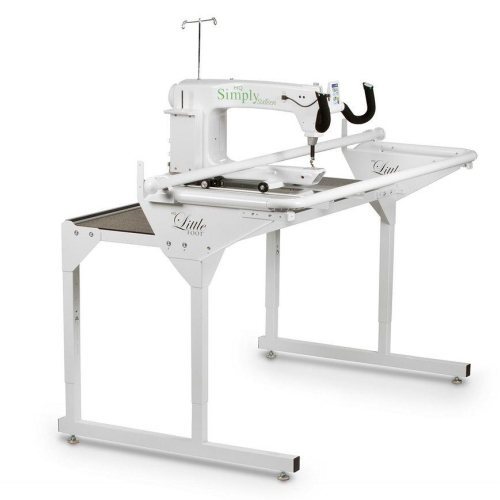

Don’t let space restrictions dictate what you can create. Combined with the included HQ Little Foot™ frame system, the HQ Simply Sixteen enables any quilter, beginner to advanced, to finish any size quilt without the space requirements of a conventional frame system. Integrated technology and engineering provide the functionality that quilters demand, paired with the smoothest stitch in the industry.The HQ Simply Sixteen quilter is backed by the HQ warranty and a large network of local representatives. This Handi Quilter long arm quilter is simply the best solution when space is at a premium.
Key Features
Rear Handlebars

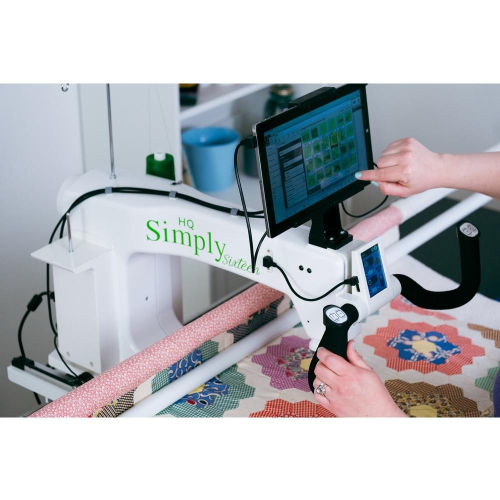

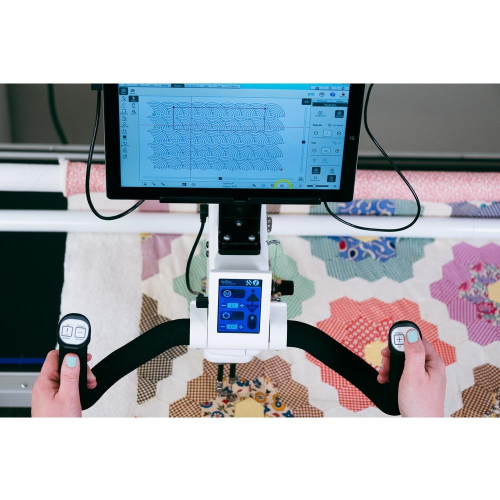

The optional rear handlebars and display enable you to quilt from the back of the HQ Simply Sixteen. This makes it possible to use pantographs and groovy boards for edge-to-edge quilting in conjunction with the optional laser light and groovy board stylus (The optional HQ Studio Frame is recommended for quilters who plan to work in this way).
Laser
The laser pin attaches to either the front or the back of the machine for following pantographs or separate design drawings.
| Category | Details |
|---|---|
| Handlebars & Control | Ergonomic Front Handlebars with Touchscreen Control |
| Maximum Sewing Speed | Up to 1,800 Stitches Per Minute |
| Lighting | LED Light Ring |
| Stitch Regulation | Precision & Cruise Modes |
| Manual Mode | Two Customizable Preset Speeds |
| Stitch Range | 4 – 18 Stitches Per Inch |
| Needle Control | Needle Stop Positioning, Easy Change with Ergonomic Thumb Screw |
| Bobbin System | High-Speed Rotary Hook with Large Capacity M-Class Bobbin |
| Included Feet | Quarter-Inch Ruler Foot Installed, Open-Toe Foot Included |
| Monitoring Features | Quilting Alarm & Project Timer Built-in Diagnostics |
| Connectivity | Integrated USB Port |
| Language Options | English, French, German, Spanish |
| Frame Type | Included 5ft Little Frame (Free-Standing) |
| Frame Features | 6 Easy-Grasp Quilt Clamps 1 HQ Super Quilt Clamp 6 Hold-Tight Clamps Accommodates Any Quilt Size |
| Frame Adjustment | Adjustable Height from 33" to 44" |
| Frame Construction | Professional-Grade High-Quality Steel, Easy Assembly |
| Leveling System | Adjustable Leveling Feet |
| Included Items | HQ Simply Sixteen 16" Longarm Machine Color Touchscreen Bobbin Winder 5 Bobbins 20 Needles Sample Thread |
| Optional Accessories | Pro Stitcher Premium Rear Handlebars & Display HQ Ruler Base Handi Feet Couching Feet Kit Glide Foot Echo Feet Kit Horizontal Spool Pin HQ Handi Light Casters |
| Support & Warranty | Nationwide Retailer Support 10 Years Casting / 5 Years Electrical & Mechanical |
| Origin | Designed, Engineered & Assembled in the U.S.A. |
| Category | Details |
|---|---|
| Sewing Opening Dimensions | 8.25" x 16" (245 mm x 610 mm) |
| Sewing Speed | Manual Mode: 25 – 1,800 Stitches Per Minute Regulated Mode: 0 – Full Speed |
| Needle System | 134 (135 x 7) |
| Recommended Needle Sizes | 80/12 – 125/20 |
| Hook System | Rotary, Horizontal Axis, M-Class Bobbin |
| Bobbin Type | Aluminum, Class M |
| Bobbin Case | Type MF |
| Needle Control | Up & Down Positioning, Walking Stitch |
| Electrical Power | 105 – 120 VAC, 47–63 Hz, 300W Peak |
| Sew Foot Lift | 5 mm |
| Needle Bar Stroke | 35.3 mm |
| Take-Up Stroke | 35.3 mm |
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder
Handi Quilter Simply Sixteen 16-inch Long Arm With 5ft Little Foot Frame
- Product Code: smp-4767600100
Don’t let space restrictions dictate what you can create. Combined with the included HQ Little Foot™ frame system, the HQ Simply Sixteen enables any quilter, beginner to advanced, to finish any size quilt without the space requirements of a conventional frame system. Integrated technology and engineering provide the functionality that quilters demand, paired with the smoothest stitch in the industry.The HQ Simply Sixteen quilter is backed by the HQ warranty and a large network of local representatives. This Handi Quilter long arm quilter is simply the best solution when space is at a premium.
Key Features
Rear Handlebars
The optional rear handlebars and display enable you to quilt from the back of the HQ Simply Sixteen. This makes it possible to use pantographs and groovy boards for edge-to-edge quilting in conjunction with the optional laser light and groovy board stylus (The optional HQ Studio Frame is recommended for quilters who plan to work in this way).
Laser
The laser pin attaches to either the front or the back of the machine for following pantographs or separate design drawings.
| Category | Details |
|---|---|
| Handlebars & Control | Ergonomic Front Handlebars with Touchscreen Control |
| Maximum Sewing Speed | Up to 1,800 Stitches Per Minute |
| Lighting | LED Light Ring |
| Stitch Regulation | Precision & Cruise Modes |
| Manual Mode | Two Customizable Preset Speeds |
| Stitch Range | 4 – 18 Stitches Per Inch |
| Needle Control | Needle Stop Positioning, Easy Change with Ergonomic Thumb Screw |
| Bobbin System | High-Speed Rotary Hook with Large Capacity M-Class Bobbin |
| Included Feet | Quarter-Inch Ruler Foot Installed, Open-Toe Foot Included |
| Monitoring Features | Quilting Alarm & Project Timer Built-in Diagnostics |
| Connectivity | Integrated USB Port |
| Language Options | English, French, German, Spanish |
| Frame Type | Included 5ft Little Frame (Free-Standing) |
| Frame Features | 6 Easy-Grasp Quilt Clamps 1 HQ Super Quilt Clamp 6 Hold-Tight Clamps Accommodates Any Quilt Size |
| Frame Adjustment | Adjustable Height from 33" to 44" |
| Frame Construction | Professional-Grade High-Quality Steel, Easy Assembly |
| Leveling System | Adjustable Leveling Feet |
| Included Items | HQ Simply Sixteen 16" Longarm Machine Color Touchscreen Bobbin Winder 5 Bobbins 20 Needles Sample Thread |
| Optional Accessories | Pro Stitcher Premium Rear Handlebars & Display HQ Ruler Base Handi Feet Couching Feet Kit Glide Foot Echo Feet Kit Horizontal Spool Pin HQ Handi Light Casters |
| Support & Warranty | Nationwide Retailer Support 10 Years Casting / 5 Years Electrical & Mechanical |
| Origin | Designed, Engineered & Assembled in the U.S.A. |
| Category | Details |
|---|---|
| Sewing Opening Dimensions | 8.25" x 16" (245 mm x 610 mm) |
| Sewing Speed | Manual Mode: 25 – 1,800 Stitches Per Minute Regulated Mode: 0 – Full Speed |
| Needle System | 134 (135 x 7) |
| Recommended Needle Sizes | 80/12 – 125/20 |
| Hook System | Rotary, Horizontal Axis, M-Class Bobbin |
| Bobbin Type | Aluminum, Class M |
| Bobbin Case | Type MF |
| Needle Control | Up & Down Positioning, Walking Stitch |
| Electrical Power | 105 – 120 VAC, 47–63 Hz, 300W Peak |
| Sew Foot Lift | 5 mm |
| Needle Bar Stroke | 35.3 mm |
| Take-Up Stroke | 35.3 mm |
- Brand: Handi Quilter
- Viewed: 28
- Availability: In Stock
$2,299.00
