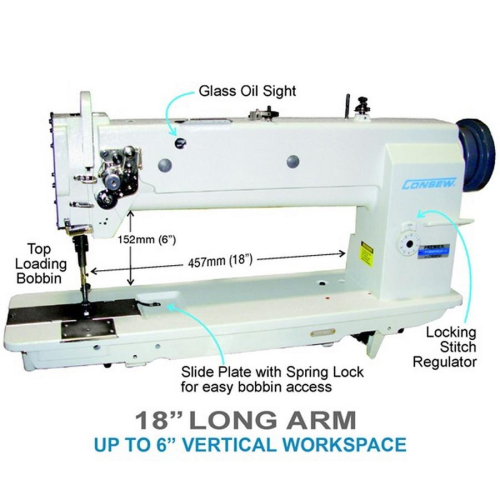

The Consew P1255RBLH-18 Long Arm Sewing Machine with Table and Servo Motor contains a variety of features the include, but not limited to: drop feed, needle feed, walking foot and is a high quality lockstitch machine with up to 6" vertical working space.
Table & Servo Motor
This Package includes a Fully Assembled Table and a Servo Motor.
Motor Options
With so many options available for motors when we talk about replacing or buying a motor for our industrial sewing machine, there is one important point to keep always in mind "The Speed".
Regardless of brand or price, motors come in two different configurations:
Fixed-Speed Clutch Motor
Adjustable-Speed Servo Motor
Clutch motors operate at a fixed speed, typically between 1725 - 3450 rpm, depending on the type of machine. Servo Motors on the other hand are speed adjustable. The two major advantages of the Servo Motor are that you can control the speed of the motor and that the motor is completely silent when the pedal is not engaged.
Some other advantages of the Servo Motor include:
They consume up to 90% less energy than clutch motors
1/3 lighter than clutch motors
Reverse motor rotation with the flick of a switch
Nothing to wear or adjust
Adjusted speed remains the same no matter how hard the pedal is pressed
Most of our customers find that the sewing machine is much easier to control with a Servo motor because of the speed control. This is especially helpful for beginner sewers but also for projects that simply don't require high speed stitching.
This machine package includes the 3/4 Horsepower, CSM-550-1 adjustable speed servo motor
| Category | Details |
|---|---|
| Workspace | Long Arm with 18" Working Space, Up to 6" Vertical Clearance |
| Lubrication System | Oil Pump System with Adjustable Flow, Upper Oil Glass Sight |
| Hook System | Large Vertical Axis Automatically Oiled Hook |
| Stitch Regulation | Barrel-Type Locking Stitch Regulator |
| Bobbin System | Large Top-Loaded Bobbin |
| Thread Control | Quick Tension Release, Adjustable Take-Up Thread Guide |
| Control Features | Reverse Stitch, Safety Clutch |
| Maintenance Access | Locking Slide Plate for Easy Bobbin Access |
| Maximum Speed | Up to 1,800 Stitches Per Minute (Depends on Material & Operation) |
| Presser Foot Lift | By Hand: 5/16" (8 mm) / By Knee: 33/64" (13 mm) |
| Needle Bar Stroke | 1-27/64" (36 mm) |
| Maximum Stitch Length | 2.8 SPI (9 mm) |
| Work Space | 18" x 4-1/4" (457 x 110 mm) |
| Working Height | Up to 6" (152 mm) Under Arm |
| Needle Type | 135 x 17 |
