Includes Fully Assembled Table and Servo Motor - Includes basic programming. *Custom programming and clamping fees may apply.
The sewing machine achieves the highest sewing speed of 3,200 stitches per min in the industrial sewing machine industry.
This Juki computerized industrial sewing machine runs at 3,200sti/min, faster than any other sewing machine ever made. The proven computer-controlled bartacking machine has been dramatically evolved to be an easier-to-use machine.
Assembled Table & Servo Motor
This Package includes a Fully Assembled Table and a Servo Motor.
Higher Productivity
The machine runs at 3,200sti/min, faster than any other sewing machine ever made.
In addition to the high-speed sewing performance, cycle time can be substantially decreased (reduced approximately 30% compared to our predecessor model: For 42-stitch large bartacks).
The Sewing Starting Point can be Corrected
The sewing starting point can be shifted in the X/Y direction. This enables the correction of a sewing pattern in accordance with the presser foot configuration.
Simple Work Clamp Kit
Conventionally, the front plate has to be removed to change the work clamp. With the new work clamp kit, the work clamp can be changed without removing the plate.
Control Box Panel
Functional settings, such as pattern numbers, enlargement/reduction scales, swing speeds and needle thread tensions can be established through the operation panel with ease.
The operation panel has been installed at an angle and can be placed at the top, bottom, right or left part of the table according to the operator's preference.
Reduction of Noise and Vibration
The main shaft and the thread take-up lever mechanism have been reworked to enable the reduction of noise and vibration. As compared with the conventional model 1900-BHS, the noise is reduced by 3.9 dB and the vibration is reduced by 1.65 dB.
Excellent Seam Quality
The Juki computerized industrial sewing machine comes with a newly developed needle thread grasping mechanism. The mechanism prevents thread from slipping off from the needle eyelet at the beginning of sewing, from tangling on the wrong side of the material and also being stained during sewing.
Eliminated Oil Stains
Thanks to our advanced dry-head technology, the frame (needle bar and thread take-up) no longer requires lubrication. This prevents the material from being stained with lubricating oil.
Active Tension
Since the machine is provided with an active tension mechanism, it is able to set a needle thread tension that matches various sewing conditions (such as thread, material and sewing speed) on the operation panel, store the data in memory and reproduce it.
Auto-Lifter
The presser foot lift can be set to a maximum of 17mm by using the reverse-rotation needle-up function in combination with the auto lifter mechanism.
Excellent Workability and Operability
The direct-drive head (with no belt), which is directly connected to a compact AC servomotor, achieves outstanding responsiveness and improved stop accuracy. This head helps create a comfortable working environment with reduced vibration and noise.
The arm section of the machine head is fitted with a hand pulley. This allows the operator to visually check the needle entry points.
Motor Options
Clutch motors operate at a fixed speed, typically between 1725 - 3450 rpm, depending on the type of machine. Servo Motors on the other hand are speed adjustable. The two major advantages of the Servo Motor are that you can control the speed of the motor and that the motor is completely silent when the pedal is not engaged.
Some other advantages of the Servo Motor include:
- They consume up to 90% less energy than clutch motors
- 1/3 lighter than clutch motors
- Reverse motor rotation with the flick of a switch
- Nothing to wear or adjust
- Adjusted speed remains the same no matter how hard the pedal is pressed
Most of our customers find that the sewing machine is much easier to control with a Servo motor because of the speed control. This is especially helpful for beginner sewers but also for projects that simply don't require high speed stitching.
| Category | Details |
|---|---|
| Application | Standard Eyelet Buttonhole Bartacking Machine |
| Max. sewing speed | 3,200 Stitches per Minute |
| Sewing Area | 30mm x 40mm |
| Needle Bar Stroke | 41.2mm |
| Lift of the Work Clamp Foot | 14mm (17mm when the reverse-rotation needle-up function) |
| Needle (at the time of delivery) | DPx5 (#14) |
| Hook | Standard Shuttle Hook |
| Number of Stitches that can be Stored in Memory | Max. 20,000 stitches |
| Number of Standard Patterns | 50 Patterns |
| Number of Data that can be Input | 200 Patterns (for up to 150 patterns, sewing data can be added.) |
| Lubrication | Hook: Minute-Quantity Lubrication |
| Lubricating Oil | JUKI New Defrix Oil No.2 (equivalent to ISO VG32) |
| Weight of the machine head | 47.3kg |
| Weight of the Control Box | 11.3kg |
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder

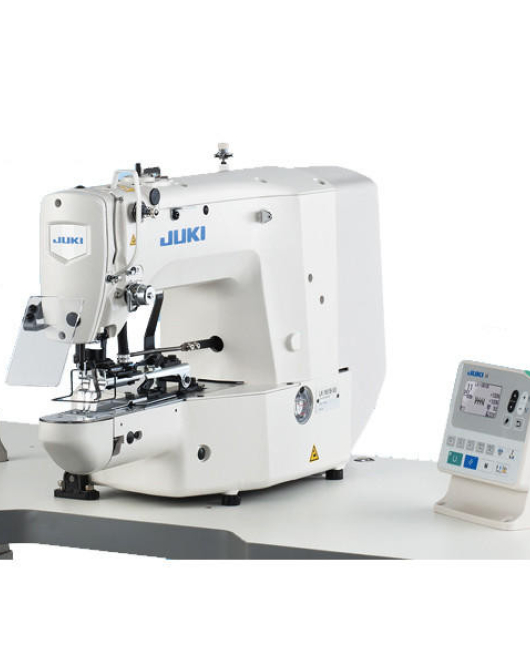

Juki 1900-BHS Computer Controlled Highspeed Bartacking Industrial Machine Includes Table and Servo Motor
- Product Code: LK1900BNS
Includes Fully Assembled Table and Servo Motor - Includes basic programming. *Custom programming and clamping fees may apply.
The sewing machine achieves the highest sewing speed of 3,200 stitches per min in the industrial sewing machine industry.
This Juki computerized industrial sewing machine runs at 3,200sti/min, faster than any other sewing machine ever made. The proven computer-controlled bartacking machine has been dramatically evolved to be an easier-to-use machine.
Assembled Table & Servo Motor
This Package includes a Fully Assembled Table and a Servo Motor.
Higher Productivity
The machine runs at 3,200sti/min, faster than any other sewing machine ever made.
In addition to the high-speed sewing performance, cycle time can be substantially decreased (reduced approximately 30% compared to our predecessor model: For 42-stitch large bartacks).
The Sewing Starting Point can be Corrected
The sewing starting point can be shifted in the X/Y direction. This enables the correction of a sewing pattern in accordance with the presser foot configuration.
Simple Work Clamp Kit
Conventionally, the front plate has to be removed to change the work clamp. With the new work clamp kit, the work clamp can be changed without removing the plate.
Control Box Panel
Functional settings, such as pattern numbers, enlargement/reduction scales, swing speeds and needle thread tensions can be established through the operation panel with ease.
The operation panel has been installed at an angle and can be placed at the top, bottom, right or left part of the table according to the operator's preference.
Reduction of Noise and Vibration
The main shaft and the thread take-up lever mechanism have been reworked to enable the reduction of noise and vibration. As compared with the conventional model 1900-BHS, the noise is reduced by 3.9 dB and the vibration is reduced by 1.65 dB.
Excellent Seam Quality
The Juki computerized industrial sewing machine comes with a newly developed needle thread grasping mechanism. The mechanism prevents thread from slipping off from the needle eyelet at the beginning of sewing, from tangling on the wrong side of the material and also being stained during sewing.
Eliminated Oil Stains
Thanks to our advanced dry-head technology, the frame (needle bar and thread take-up) no longer requires lubrication. This prevents the material from being stained with lubricating oil.
Active Tension
Since the machine is provided with an active tension mechanism, it is able to set a needle thread tension that matches various sewing conditions (such as thread, material and sewing speed) on the operation panel, store the data in memory and reproduce it.
Auto-Lifter
The presser foot lift can be set to a maximum of 17mm by using the reverse-rotation needle-up function in combination with the auto lifter mechanism.
Excellent Workability and Operability
The direct-drive head (with no belt), which is directly connected to a compact AC servomotor, achieves outstanding responsiveness and improved stop accuracy. This head helps create a comfortable working environment with reduced vibration and noise.
The arm section of the machine head is fitted with a hand pulley. This allows the operator to visually check the needle entry points.
Motor Options
Clutch motors operate at a fixed speed, typically between 1725 - 3450 rpm, depending on the type of machine. Servo Motors on the other hand are speed adjustable. The two major advantages of the Servo Motor are that you can control the speed of the motor and that the motor is completely silent when the pedal is not engaged.
Some other advantages of the Servo Motor include:
- They consume up to 90% less energy than clutch motors
- 1/3 lighter than clutch motors
- Reverse motor rotation with the flick of a switch
- Nothing to wear or adjust
- Adjusted speed remains the same no matter how hard the pedal is pressed
Most of our customers find that the sewing machine is much easier to control with a Servo motor because of the speed control. This is especially helpful for beginner sewers but also for projects that simply don't require high speed stitching.
| Category | Details |
|---|---|
| Application | Standard Eyelet Buttonhole Bartacking Machine |
| Max. sewing speed | 3,200 Stitches per Minute |
| Sewing Area | 30mm x 40mm |
| Needle Bar Stroke | 41.2mm |
| Lift of the Work Clamp Foot | 14mm (17mm when the reverse-rotation needle-up function) |
| Needle (at the time of delivery) | DPx5 (#14) |
| Hook | Standard Shuttle Hook |
| Number of Stitches that can be Stored in Memory | Max. 20,000 stitches |
| Number of Standard Patterns | 50 Patterns |
| Number of Data that can be Input | 200 Patterns (for up to 150 patterns, sewing data can be added.) |
| Lubrication | Hook: Minute-Quantity Lubrication |
| Lubricating Oil | JUKI New Defrix Oil No.2 (equivalent to ISO VG32) |
| Weight of the machine head | 47.3kg |
| Weight of the Control Box | 11.3kg |
- Brand: Juki
- Viewed: 34
- Availability: In Stock
$4,799.00
