Highlead HLK-03BT electronic bartack sewing machine with 16 different pre-programmed patterns to suit most standard bar-tacking operations.
High speed single needle lockstitch bartack sewing up-to 2500 stitches per minute. The maximum sewing speed is user controllable, in 10 speed steps, from 200 to 2500spm.
Tacking patterns can be freely scaled between 10% to 200%, of their original size, by using the simplified push button operator control panel. X & Y axis can be scaled independently allowing the freedom to adjust length or width (or both).
The machine is programmable* and features an internal storage memory. If the pre-programmed tacking patterns are not suitable, then the machine can be re-programmed* with-in a 30x30mm sewing area. Custom patterns up-to 8000 stitches can be input.
Optional & custom made pattern clamps can be fitted with-in as little as 10 minutes after removing the pre-fitted bartack clamps.
The Highlead HLK-03BT is manufactured under licence using Mitsubishi’s proven PLK technology, the electronic systems, control devices, Limiservo X-G series motor and other key parts are manufactured by the Mitsubishi Electric Corporation in Japan.
Pre-programmed standard bar-tack patterns include 21,28,36 and 42 stitch patterns (others patterns included 12,14,20,25 and 70 stitch).
| Features | |
|---|---|
| Built-in Bartack Styles | 16 pre-programmed styles (HLK03BT) |
| Programmable | Can accept custom pattern designs |
| Design System | Reliable PLK design & electronics |
| Size Adjustment | X-Y scale control |
| High Speed Sewing | Up to 2500 SPM |
| Control System | Mitsubishi BT-CU-20 computer control |
| Motor | Mitsubishi Limiservo X G Series 550W |
| Specifications | |
| Sewing Area | 30 mm x 30 mm (X-Y) |
| Max Sewing Speed | 2500 SPM |
| Stitch Length | 0.1 – 12.7 mm |
| Needle Bar Stroke | 41.2 mm |
| Take-Up Stroke | 68 mm |
| Work Holder / Clamp Lift | 15 mm |
| Feed System | Intermittent or continuous |
| Hook | Shuttle hook |
| Lubrication | Automatic |
| Program Device | Optional |
| Speed Selection | 100 – 2500 |
| Needle Size | DPx5 #16 |
| Power | 220 – 240V / 50Hz |
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder

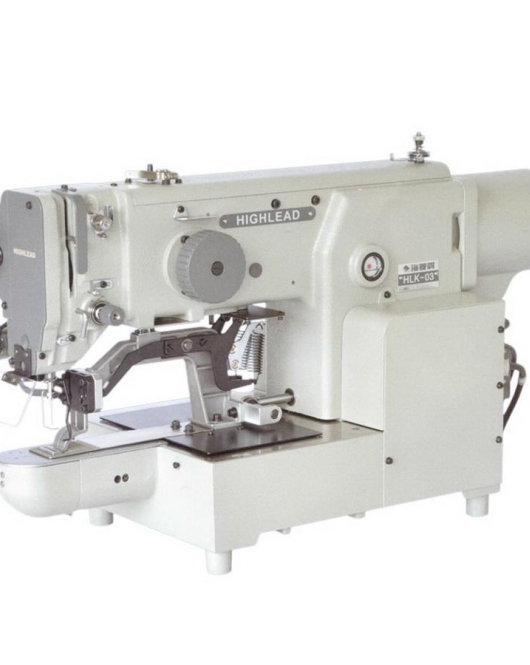

Highlead HLK-03 Series Industrial Sewing Machines with Assembled Table and Servo Motor
- Product Code: HLK-03
Highlead HLK-03BT electronic bartack sewing machine with 16 different pre-programmed patterns to suit most standard bar-tacking operations.
High speed single needle lockstitch bartack sewing up-to 2500 stitches per minute. The maximum sewing speed is user controllable, in 10 speed steps, from 200 to 2500spm.
Tacking patterns can be freely scaled between 10% to 200%, of their original size, by using the simplified push button operator control panel. X & Y axis can be scaled independently allowing the freedom to adjust length or width (or both).
The machine is programmable* and features an internal storage memory. If the pre-programmed tacking patterns are not suitable, then the machine can be re-programmed* with-in a 30x30mm sewing area. Custom patterns up-to 8000 stitches can be input.
Optional & custom made pattern clamps can be fitted with-in as little as 10 minutes after removing the pre-fitted bartack clamps.
The Highlead HLK-03BT is manufactured under licence using Mitsubishi’s proven PLK technology, the electronic systems, control devices, Limiservo X-G series motor and other key parts are manufactured by the Mitsubishi Electric Corporation in Japan.
Pre-programmed standard bar-tack patterns include 21,28,36 and 42 stitch patterns (others patterns included 12,14,20,25 and 70 stitch).
| Features | |
|---|---|
| Built-in Bartack Styles | 16 pre-programmed styles (HLK03BT) |
| Programmable | Can accept custom pattern designs |
| Design System | Reliable PLK design & electronics |
| Size Adjustment | X-Y scale control |
| High Speed Sewing | Up to 2500 SPM |
| Control System | Mitsubishi BT-CU-20 computer control |
| Motor | Mitsubishi Limiservo X G Series 550W |
| Specifications | |
| Sewing Area | 30 mm x 30 mm (X-Y) |
| Max Sewing Speed | 2500 SPM |
| Stitch Length | 0.1 – 12.7 mm |
| Needle Bar Stroke | 41.2 mm |
| Take-Up Stroke | 68 mm |
| Work Holder / Clamp Lift | 15 mm |
| Feed System | Intermittent or continuous |
| Hook | Shuttle hook |
| Lubrication | Automatic |
| Program Device | Optional |
| Speed Selection | 100 – 2500 |
| Needle Size | DPx5 #16 |
| Power | 220 – 240V / 50Hz |
- Brand: Highlead
- Viewed: 34
- Availability: In Stock
$6,299.00
