The machine performs sewing that matches a broader range of sewing items.
The machine can be used for the hemming process of the sleeves and bottoms of T-shirts and for the covering process for sportswear and knitwear. It is not a specific-purpose model, but a basic one which can be used for a broader range of processes independently

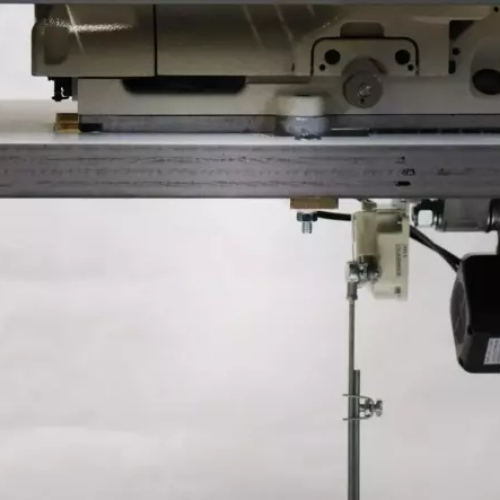

This Package includes a Fully Assembled Table and a Servo Motor.
No Looper thread Twining
The rotating part of the looper thread cam shaft is covered to prevent the looper thread from twining around the looper thread cam shaft. A V-shaped thread catcher has been installed on the looper thread cam bracket to easily clamp the looper thread, which is likely to twine around the cam.
Needle Bar Stroke Conversion Mechanism
By changing over the needle bar stroke, penetrating force of the needle as well as thread tension to fit heavy-weight materials (fleece, blankets) can be obtained. The needle bar stroke can be changed by adjusting the eccentric pin. (Changing of parts is not required. Factory-set at the time of delivery: 31mm; for sewing heavy-weight materials: 33mm)
Micro-Lifter Mechanism
Elastic material or delicate material can be sewn with the presser foot kept slightly raised. This effectively helps reduce the degree of slippage, warpage and damage of the material.
Stitch Type Change Over
It is now possible to change over the stitch type, such as elastic soft-seams for inner wear and high-quality well-tensed seams for outer wear. The stitch type can be changed over (soft-seams/well-tensed seams) simply by changing the thread path.
Differential-feed Micro-adjustment Mechanism
It is possible to finely adjust the differential feed amount to a best-suited value for the material to be used. The differential feed ratio is constant even if the stitch length is changed
Feed Dog Inclination Adjustment
The feed dog inclination can be externally adjusted with ease. This adjustment mechanism effectively helps improve the material holding ability of the feed dog and prevent uneven material feed and puckering.
| Category | Details |
|---|---|
| Stitch Type | 3-Needle |
| Example of Application | Hemming and covering for knits and general knitted fabrics |
| Stitch Length | 1.2 mm to 3.6 mm (adjustable up to 4.4 mm) |
| Needle Bar Stroke | 31 mm (33 mm when changing the eccentric pin) |
| Needle Gauge | 3-needle: 4.8 mm, 5.6 mm, 6.4 mm |
| Needle | #UYX128GAS 9S ~ 12S (10S standard) |
| Lift of the Presser Foot | 5 mm (Top & Bottom Covering Stitch) 8 mm (Bottom Covering Stitch) |
| Looper Mechanism | Spherical rod drive method |
| Lubricating System | Forced lubrication method by gear pump |
| Lubrication | Automatic JUKI Machine Oil No.18 (Equivalent to ISO VG18) |
| Oil Reservoir Capacity | 600 cc (lower line) to 900 cc (upper line) |
| Weight of the Machine Head | 46 kg |
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder

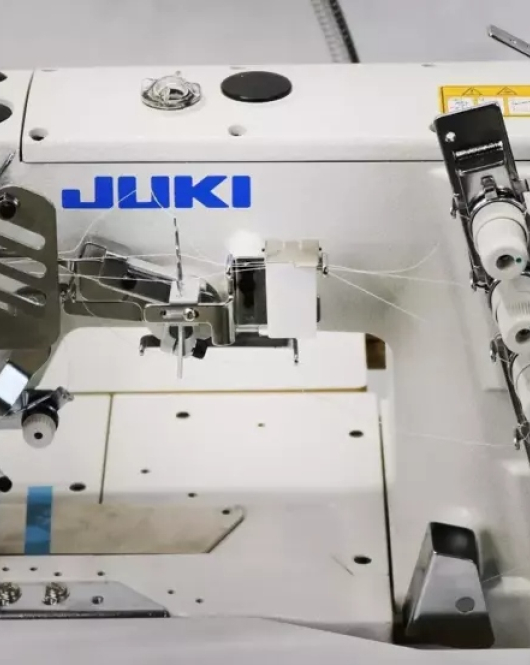

Juki MF-7523 - 3 Needle Coverstitch Industrial Machine w/ Table & Motor
- Product Code: MF-7523
The machine performs sewing that matches a broader range of sewing items.
The machine can be used for the hemming process of the sleeves and bottoms of T-shirts and for the covering process for sportswear and knitwear. It is not a specific-purpose model, but a basic one which can be used for a broader range of processes independently
This Package includes a Fully Assembled Table and a Servo Motor.
No Looper thread Twining
The rotating part of the looper thread cam shaft is covered to prevent the looper thread from twining around the looper thread cam shaft. A V-shaped thread catcher has been installed on the looper thread cam bracket to easily clamp the looper thread, which is likely to twine around the cam.
Needle Bar Stroke Conversion Mechanism
By changing over the needle bar stroke, penetrating force of the needle as well as thread tension to fit heavy-weight materials (fleece, blankets) can be obtained. The needle bar stroke can be changed by adjusting the eccentric pin. (Changing of parts is not required. Factory-set at the time of delivery: 31mm; for sewing heavy-weight materials: 33mm)
Micro-Lifter Mechanism
Elastic material or delicate material can be sewn with the presser foot kept slightly raised. This effectively helps reduce the degree of slippage, warpage and damage of the material.
Stitch Type Change Over
It is now possible to change over the stitch type, such as elastic soft-seams for inner wear and high-quality well-tensed seams for outer wear. The stitch type can be changed over (soft-seams/well-tensed seams) simply by changing the thread path.
Differential-feed Micro-adjustment Mechanism
It is possible to finely adjust the differential feed amount to a best-suited value for the material to be used. The differential feed ratio is constant even if the stitch length is changed
Feed Dog Inclination Adjustment
The feed dog inclination can be externally adjusted with ease. This adjustment mechanism effectively helps improve the material holding ability of the feed dog and prevent uneven material feed and puckering.
| Category | Details |
|---|---|
| Stitch Type | 3-Needle |
| Example of Application | Hemming and covering for knits and general knitted fabrics |
| Stitch Length | 1.2 mm to 3.6 mm (adjustable up to 4.4 mm) |
| Needle Bar Stroke | 31 mm (33 mm when changing the eccentric pin) |
| Needle Gauge | 3-needle: 4.8 mm, 5.6 mm, 6.4 mm |
| Needle | #UYX128GAS 9S ~ 12S (10S standard) |
| Lift of the Presser Foot | 5 mm (Top & Bottom Covering Stitch) 8 mm (Bottom Covering Stitch) |
| Looper Mechanism | Spherical rod drive method |
| Lubricating System | Forced lubrication method by gear pump |
| Lubrication | Automatic JUKI Machine Oil No.18 (Equivalent to ISO VG18) |
| Oil Reservoir Capacity | 600 cc (lower line) to 900 cc (upper line) |
| Weight of the Machine Head | 46 kg |
- Brand: Juki
- Viewed: 31
- Availability: In Stock
$2,799.00
