The Consew P1206RB Lockstitch Sewing Machine contains a variety of features that include, but not limited to: drop feed, needle feed, walking foot and is a high quality lockstitch machine.
Table & Servo Motor
This Package includes a Fully Assembled Table and a Servo Motor.
Motor Options
With so many options available for motors when we talk about replacing or buying a motor for our industrial sewing machine, there is one important point to keep always in mind "The Speed". Regardless of brand or price, motors come in two different configurations:
- Variable Speed Servo Motor
- Adjustable-Speed Servo Motor
Clutch motors operate at a fixed speed, typically between 1725 - 3450 rpm, depending on the type of machine. Servo Motors on the other hand are speed adjustable. The two major advantages of the Servo Motor are that you can control the speed of the motor and that the motor is completely silent when the pedal is not engaged.
Some other advantages of the Servo Motor include:
- They consume up to 90% less energy than clutch motors
- 1/3 lighter than clutch motors
- Reverse motor rotation with the flick of a switch
- Nothing to wear or adjust
- Adjusted speed remains the same no matter how hard the pedal is pressed
Most of our customers find that the sewing machine is much easier to control with a Servo motor because of the speed control. This is especially helpful for beginner sewers but also for projects that simply don't require high speed stitching.
This machine package includes a fixed-speed servo motor.
| Oil System | Oil pump system with adjustable oil flow |
| Oil Gauge | Adjustable oil gauge |
| Hook System | Large horizontal axis hook with side-loaded bobbin |
| Thread Control | Adjustable upper thread tension |
| Stitch Regulator | Locking stitch regulator |
| Bobbin Winder | Built-in |
| Reverse Function | Yes |
| Max Speed | 3000 S.P.M. (*depends on material & operation) |
| Presser Foot Lift (Hand) | 5/16" (8 mm) |
| Presser Foot Lift (Knee) | 16 mm |
| Needle Bar Stroke | 1 29/64" (37 mm) |
| Max Stitch Length | 3.6 S.P.I (7 mm) |
| Work Space | 260 x 120 mm |
| Needle | 17e |
| Number of Needles | 1 (Single) |
| Feeding Mechanism | Walking Foot |
| Workspace Type | Standard Workspace |
| Function Type | Standard Functions |
| Stitch Type | 301 |
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder

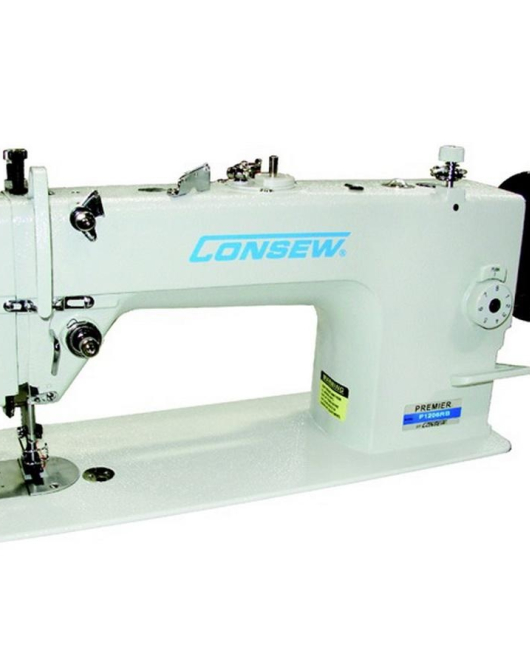

Consew Premier 1206RB Lockstitch Machine with Assembled Table and Servo Motor
- Product Code: smp-conp1206rb
The Consew P1206RB Lockstitch Sewing Machine contains a variety of features that include, but not limited to: drop feed, needle feed, walking foot and is a high quality lockstitch machine.
Table & Servo Motor
This Package includes a Fully Assembled Table and a Servo Motor.
Motor Options
With so many options available for motors when we talk about replacing or buying a motor for our industrial sewing machine, there is one important point to keep always in mind "The Speed". Regardless of brand or price, motors come in two different configurations:
- Variable Speed Servo Motor
- Adjustable-Speed Servo Motor
Clutch motors operate at a fixed speed, typically between 1725 - 3450 rpm, depending on the type of machine. Servo Motors on the other hand are speed adjustable. The two major advantages of the Servo Motor are that you can control the speed of the motor and that the motor is completely silent when the pedal is not engaged.
Some other advantages of the Servo Motor include:
- They consume up to 90% less energy than clutch motors
- 1/3 lighter than clutch motors
- Reverse motor rotation with the flick of a switch
- Nothing to wear or adjust
- Adjusted speed remains the same no matter how hard the pedal is pressed
Most of our customers find that the sewing machine is much easier to control with a Servo motor because of the speed control. This is especially helpful for beginner sewers but also for projects that simply don't require high speed stitching.
This machine package includes a fixed-speed servo motor.
| Oil System | Oil pump system with adjustable oil flow |
| Oil Gauge | Adjustable oil gauge |
| Hook System | Large horizontal axis hook with side-loaded bobbin |
| Thread Control | Adjustable upper thread tension |
| Stitch Regulator | Locking stitch regulator |
| Bobbin Winder | Built-in |
| Reverse Function | Yes |
| Max Speed | 3000 S.P.M. (*depends on material & operation) |
| Presser Foot Lift (Hand) | 5/16" (8 mm) |
| Presser Foot Lift (Knee) | 16 mm |
| Needle Bar Stroke | 1 29/64" (37 mm) |
| Max Stitch Length | 3.6 S.P.I (7 mm) |
| Work Space | 260 x 120 mm |
| Needle | 17e |
| Number of Needles | 1 (Single) |
| Feeding Mechanism | Walking Foot |
| Workspace Type | Standard Workspace |
| Function Type | Standard Functions |
| Stitch Type | 301 |
- Brand: consew
- Viewed: 25
- Availability: In Stock
$1,169.00
