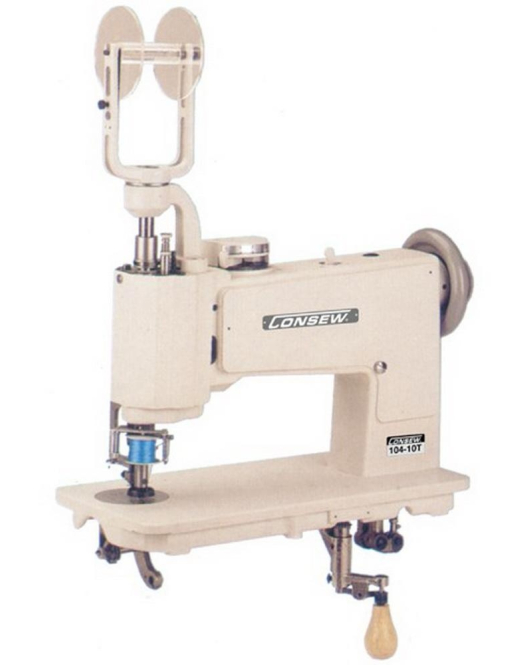

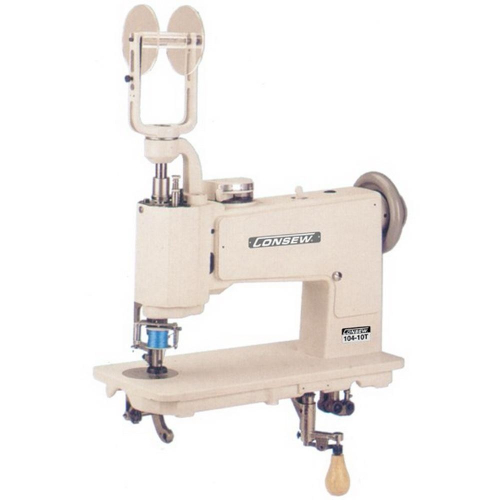

The Consew Model 104-10 / 10T is for general use in Moss/Drop Stitch, Attaching Tape, Braiding Stitch, Ray Stitch. It is equipped with universal feed movent, an adjustable needle plate and an easy hand operated directional control.

Applications

• Suitable on such products as wearing apparel, linens, towels, bedspreads, shirts, shop coats, curtains, banners, emblems, blankets, table cloths, coats and caps
• Ideal for use by laundries, camping outfitters, upholsterers, drapery shops, uniform clothing suppliers, linen suppliers and sporting goods stores
• Chainstitching and drop or moss stitching

Features

• Universal feed movement allows free-hand stitching in any shape, form, style or direction
• Adjustable needle plate accommodates a variety of needle sizes and threads
• Easy-to-change hook needle
• Uses all types of thread: cotton, silk, wool, metal and synthetic
• Equipped with device for changing from chainstitch to dropstitch without removing work or rethreading machine
• Model 104-100 available for sewing sequins

Specifications

Stitch Type

Single Needle, Single Thread - Chainstich - Type 101

Speed, Max (S.P.M.)

800

Feed

Universal Feed Movement

Max Stitch Length

13/64" (5mm)

Presser Foot Lift

9/32" (7mm)

Needle Bar Stroke

9/16" (14mm)

Needle Used

137x1 TR (Chainstitch) 137x1 SM (Moss Stitch, Drop Stitch)

Work Space

10-1/4" (260mm)

Bed Size

7-3/4" x 16-3/8" (197mm x 416mm)
