Wide sewing area, touch screen interface and a multitude of other functions. The HZL-NX7 computerized sewing and quilting machine is made for professionals who need a reliable, high quality machine.
Key Features
NEW Interchangeable Single Needle System
Users can now create perfect straight stitches with the revolutionary Single Needle System. Using the provided t-screwdriver, users can "pop" the standard feed dog and throat plate out to install the System. Then, attach the presser foot for an exclusive straight stitch experience and achieve precise sewing known previously only to JUKI industrial sewing machines.
NEW Equipped With Juki Smart Feed (JSF)
Additionally, users can engage the JUKI Smart Feed (dual feed function) to move in sync the top and bottom layer of fabric. Perfect for points, precision, and quilt layers. Please note that the presser feet with the square gap at the end can be used with JSF.
NEW Foot Lift Function
The Kirei HZL-NX7 is also equipped with a micro-lifter presser foot function. This function reduces uneven sewing on quilts and velvets. When the presser foot is raised, the feed dogs automatically lower for easy placement of fabrics. Users can also sew appliques with the pivot function.

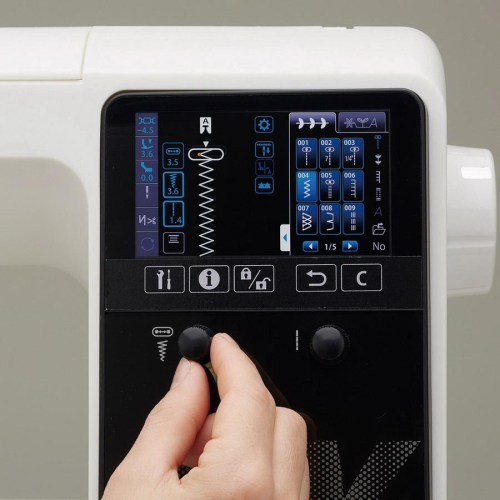

Color touch panel
Check settings and sewing conditions numerically and graphically. The various settings can be specified intuitively.
Ease of Access
Choosing a specific type of pattern just became easier.
Bobbin thread counter
The amount of bobbin thread used is counted based on the stitch length and number of stitches sewn.Bobbin thread breakage can be prevented since you will be warned when 20% of thread remains.
Thread tension setting optimized for the pattern
The thread tension most suitable for the pattern and stitch length will be set.Sew beautiful seams without shrinkage even when sewing fine or dense stitching.
Guide
From touch panel, view instructions for main machine operations.Specify basic settings without even looking at the Instruction Manual.
JUKI dual feed
The dual upper feed dogs can be installed and removed in a single step.The dual-feed design prevents uneven feeding and bunched stitching.
Throat plate with guide
An angle scale is provided in addition to a fine guide scale.Sewing at an accurate position from the fabric edge as well as piecing are both made easy.
Electronic knee lifting control mechanism
Raise the presser foot with a light knee operation.
Electronic feed dog controlmechanism
Raise and lower the feed dogs from the touch panel. When the presser foot is raised, the feed dogs are lowered. In addition to allowing switching to free-motion sewing without removing the table, fabric can be smoothly removed without damage. Check settings and sewing conditions numerically and graphically.The various settings can be specified intuitively.
More Functions and Accessories
Foot Switch Function
Allowing for greater versatility, Juki now offers assigned foot control options. With the ability to assign function to the heel side of the foot controller you can now lift the presser foot, trim threads, reverse stitch or single stitch by pressing on the heel side of the foot controller. Also allowing for no special settings you have complete control to customize your machine to best fit you.
Foot Switch Function
Allowing for greater versatility, Juki now offers assigned foot control options. With the ability to assign function to the heel side of the foot controller you can now lift the presser foot, trim threads, reverse stitch or single stitch by pressing on the heel side of the foot controller. Also allowing for no special settings you have complete control to customize your machine to best fit you.
The dials make it easy to adjust the stitch width and length (roughness) as well as the needle position (stitch baseline). The dials also allow you to make subtle adjustments to the stitch width and length while sewing.
Free-motion sewing/Sewing using a ruler
Since the feed dogs can be lowered from the touch panel, you can easily switch to free-motion sewing.The transparent and ruler-compatible quilt presser foot that is included provides even more quilting possibilities.
Stitch adjustment/needle position dials
The dials make it easy to adjust the stitch width and length (roughness) as well as the needle position (stitch baseline). The dials also allow you to make subtle adjustments to the stitch width and length while sewing.
Improved stitch patterns
In addition to the conventional horizontal (left/right) flipping, you can also use vertical (up/down) flipping to express even more with a single stitch pattern. In addition, as the number of stitch patterns with an adjustable baseline has increased, so has the size of patterns as well as the degree of freedom in the sewing position.
Thick denim folded into three layers for a flat fell seam
Evenly sews thick fabrics effortlessly.
Box Feed - Juki Industrial Sewing Machine Technology
Stay in contact with your fabrics longer for a consistent, reliable seams every time. The Juki industrial "BOX Feed" system has been brought to the home sewing machine. Our BOX Feed allows you to create perfect high-quality stitches on all types of fabrics.
Stitching thin fabrics
No fabric shrinkage even sewing on light weight cotton.
Stitching towel fabrics
Evenly feeds hard-to-sew high pile fabrics.
Float Function Prevents Uneven Seams
You can sew with the presser foot slightly floated.
Using the float function
The standard presser foot is used in both cases.
Not using the float function
Pressure on layers create uneven seams.
| Category | Details |
|---|---|
| Control System | Computerized |
| Number of Stitch Patterns | 351 |
| Number of Available Fonts | 4 |
| Buttonhole | Automatic (sensor system) with clamping plate |
| Start/Stop Button | Green: Ready / Sewing Red: Not Ready Orange: Lock stitch pressed during pattern sewing |
| Maximum Stitch Speed | 1,050 stitches/min |
| Auto Thread Trimming | Automatic simultaneous needle and bobbin thread cutting |
| Automatic Needle Threader | Yes |
| Thread Tension System | Automatic |
| Automatic Lock Stitch | Yes, includes thread trimming |
| Feed Mechanism | Box Feed Mechanism |
| Dual Feed Function | Prevents bunched stitching, ideal for shirring |
| Presser Foot Pressure Adjustment | Stepless digital adjustment |
| Drop Feed | Retractable feed dogs for free motion & button stitching |
| Bobbin Winder | Independent motor with quick bobbin preparation |
| Light | 6 LED lights, counts bobbin thread usage |
| Straight-Line Stitching Function | Straight stitch throat plate, feed dogs, and presser foot |
| Micro-Lifter | Presser foot pressure settings via icons |
| Free Arm | Removable auxiliary bed for sewing sleeves, hems, necklines |
| Stitch Width & Length | Width Max 7 mm / Length Max 5 mm |
| Needle Positions | Straight stitch: 37 / Pattern: according to design |
| Pattern Reverse | Right/Left & Up/Down |
| Twin Needle Sewing | Optional |
| Elongation Pattern | Adjusts pattern length without changing density |
| Adjustable Start/Reverse Stitch Speed | Yes |
| Needle Up/Down Button | Switch needle to raised or lowered position |
| Low-Speed Inching Sewing | Extremely slow sewing at press of button |
| Presser Foot Pivot Function | Automatically raises foot when needle stops in lower position |
| Save / Call of Patterns | 10 Patterns |
| Height of Presser Foot Lifting | 1 or 2 steps (via black button on standard foot) |
| Quick Bobbin Preparation | Button, lever, and knee-lifting lever system |
| Lock Mode | Disables all operations when machine is powered on |
| Soft Case | Protects machine from dust and damage |
| Knee Lifting Lever | Electronic knee-lifting control mechanism included |
| Wide Table | Expands work space |
| Foot Controller | Included (separate foot switch) |
| Accessory Case | Storage for presser feet and small accessories |
| Included Accessories | Standard Presser Foot (A), Straight Stitch Foot, Zipper Foot (B), Overcasting Foot (C), Blind Stitch Foot (D), Buttonhole Foot (E), Manual Buttonhole Foot (I), Open Toe Foot (O), Patchwork Foot (P), 7mm Foot, Quilt Foot (Ruler) (Q), Throat Plate, Straight Stitch Feed Dog, Touch Pen, 4 Bobbins, Needle Set HA x1 #11, #14, #16, for knit #11, Quilt Guide, Auxiliary Spool Pin, T-Shape Screwdriver, Ripper, Cleaning Brush, Spool Caps (Large, Medium, Small), Foot Controller, Knee Lifting Lever, Power Cord, Wide Table, Soft Case, Instruction Manual |
| Dimensions (W x H x D) | 445 x 290 x 210 mm (17.5" x 11.4" x 8.27") |
| Arm Size | 11.9" (L) x 4.7" (H) |
| Weight | 14.1 kg / 31.08 lbs |
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder

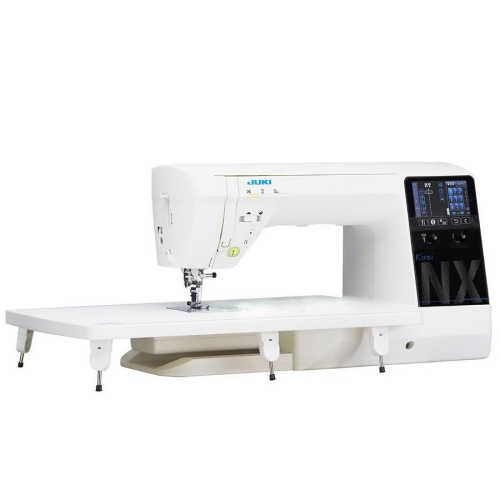

Juki Kirei HZL-NX7 Computerized Long Arm Sewing and Quilting Machine
- Product Code: HZL‑NX7
Wide sewing area, touch screen interface and a multitude of other functions. The HZL-NX7 computerized sewing and quilting machine is made for professionals who need a reliable, high quality machine.
Key Features
NEW Interchangeable Single Needle System
Users can now create perfect straight stitches with the revolutionary Single Needle System. Using the provided t-screwdriver, users can "pop" the standard feed dog and throat plate out to install the System. Then, attach the presser foot for an exclusive straight stitch experience and achieve precise sewing known previously only to JUKI industrial sewing machines.
NEW Equipped With Juki Smart Feed (JSF)
Additionally, users can engage the JUKI Smart Feed (dual feed function) to move in sync the top and bottom layer of fabric. Perfect for points, precision, and quilt layers. Please note that the presser feet with the square gap at the end can be used with JSF.
NEW Foot Lift Function
The Kirei HZL-NX7 is also equipped with a micro-lifter presser foot function. This function reduces uneven sewing on quilts and velvets. When the presser foot is raised, the feed dogs automatically lower for easy placement of fabrics. Users can also sew appliques with the pivot function.
Color touch panel
Check settings and sewing conditions numerically and graphically. The various settings can be specified intuitively.
Ease of Access
Choosing a specific type of pattern just became easier.
Bobbin thread counter
The amount of bobbin thread used is counted based on the stitch length and number of stitches sewn.Bobbin thread breakage can be prevented since you will be warned when 20% of thread remains.
Thread tension setting optimized for the pattern
The thread tension most suitable for the pattern and stitch length will be set.Sew beautiful seams without shrinkage even when sewing fine or dense stitching.
Guide
From touch panel, view instructions for main machine operations.Specify basic settings without even looking at the Instruction Manual.
JUKI dual feed
The dual upper feed dogs can be installed and removed in a single step.The dual-feed design prevents uneven feeding and bunched stitching.
Throat plate with guide
An angle scale is provided in addition to a fine guide scale.Sewing at an accurate position from the fabric edge as well as piecing are both made easy.
Electronic knee lifting control mechanism
Raise the presser foot with a light knee operation.
Electronic feed dog controlmechanism
Raise and lower the feed dogs from the touch panel. When the presser foot is raised, the feed dogs are lowered. In addition to allowing switching to free-motion sewing without removing the table, fabric can be smoothly removed without damage. Check settings and sewing conditions numerically and graphically.The various settings can be specified intuitively.
More Functions and Accessories
Foot Switch Function
Allowing for greater versatility, Juki now offers assigned foot control options. With the ability to assign function to the heel side of the foot controller you can now lift the presser foot, trim threads, reverse stitch or single stitch by pressing on the heel side of the foot controller. Also allowing for no special settings you have complete control to customize your machine to best fit you.
Foot Switch Function
Allowing for greater versatility, Juki now offers assigned foot control options. With the ability to assign function to the heel side of the foot controller you can now lift the presser foot, trim threads, reverse stitch or single stitch by pressing on the heel side of the foot controller. Also allowing for no special settings you have complete control to customize your machine to best fit you.
The dials make it easy to adjust the stitch width and length (roughness) as well as the needle position (stitch baseline). The dials also allow you to make subtle adjustments to the stitch width and length while sewing.
Free-motion sewing/Sewing using a ruler
Since the feed dogs can be lowered from the touch panel, you can easily switch to free-motion sewing.The transparent and ruler-compatible quilt presser foot that is included provides even more quilting possibilities.
Stitch adjustment/needle position dials
The dials make it easy to adjust the stitch width and length (roughness) as well as the needle position (stitch baseline). The dials also allow you to make subtle adjustments to the stitch width and length while sewing.
Improved stitch patterns
In addition to the conventional horizontal (left/right) flipping, you can also use vertical (up/down) flipping to express even more with a single stitch pattern. In addition, as the number of stitch patterns with an adjustable baseline has increased, so has the size of patterns as well as the degree of freedom in the sewing position.
Thick denim folded into three layers for a flat fell seam
Evenly sews thick fabrics effortlessly.
Box Feed - Juki Industrial Sewing Machine Technology
Stay in contact with your fabrics longer for a consistent, reliable seams every time. The Juki industrial "BOX Feed" system has been brought to the home sewing machine. Our BOX Feed allows you to create perfect high-quality stitches on all types of fabrics.
Stitching thin fabrics
No fabric shrinkage even sewing on light weight cotton.
Stitching towel fabrics
Evenly feeds hard-to-sew high pile fabrics.
Float Function Prevents Uneven Seams
You can sew with the presser foot slightly floated.
Using the float function
The standard presser foot is used in both cases.
Not using the float function
Pressure on layers create uneven seams.
| Category | Details |
|---|---|
| Control System | Computerized |
| Number of Stitch Patterns | 351 |
| Number of Available Fonts | 4 |
| Buttonhole | Automatic (sensor system) with clamping plate |
| Start/Stop Button | Green: Ready / Sewing Red: Not Ready Orange: Lock stitch pressed during pattern sewing |
| Maximum Stitch Speed | 1,050 stitches/min |
| Auto Thread Trimming | Automatic simultaneous needle and bobbin thread cutting |
| Automatic Needle Threader | Yes |
| Thread Tension System | Automatic |
| Automatic Lock Stitch | Yes, includes thread trimming |
| Feed Mechanism | Box Feed Mechanism |
| Dual Feed Function | Prevents bunched stitching, ideal for shirring |
| Presser Foot Pressure Adjustment | Stepless digital adjustment |
| Drop Feed | Retractable feed dogs for free motion & button stitching |
| Bobbin Winder | Independent motor with quick bobbin preparation |
| Light | 6 LED lights, counts bobbin thread usage |
| Straight-Line Stitching Function | Straight stitch throat plate, feed dogs, and presser foot |
| Micro-Lifter | Presser foot pressure settings via icons |
| Free Arm | Removable auxiliary bed for sewing sleeves, hems, necklines |
| Stitch Width & Length | Width Max 7 mm / Length Max 5 mm |
| Needle Positions | Straight stitch: 37 / Pattern: according to design |
| Pattern Reverse | Right/Left & Up/Down |
| Twin Needle Sewing | Optional |
| Elongation Pattern | Adjusts pattern length without changing density |
| Adjustable Start/Reverse Stitch Speed | Yes |
| Needle Up/Down Button | Switch needle to raised or lowered position |
| Low-Speed Inching Sewing | Extremely slow sewing at press of button |
| Presser Foot Pivot Function | Automatically raises foot when needle stops in lower position |
| Save / Call of Patterns | 10 Patterns |
| Height of Presser Foot Lifting | 1 or 2 steps (via black button on standard foot) |
| Quick Bobbin Preparation | Button, lever, and knee-lifting lever system |
| Lock Mode | Disables all operations when machine is powered on |
| Soft Case | Protects machine from dust and damage |
| Knee Lifting Lever | Electronic knee-lifting control mechanism included |
| Wide Table | Expands work space |
| Foot Controller | Included (separate foot switch) |
| Accessory Case | Storage for presser feet and small accessories |
| Included Accessories | Standard Presser Foot (A), Straight Stitch Foot, Zipper Foot (B), Overcasting Foot (C), Blind Stitch Foot (D), Buttonhole Foot (E), Manual Buttonhole Foot (I), Open Toe Foot (O), Patchwork Foot (P), 7mm Foot, Quilt Foot (Ruler) (Q), Throat Plate, Straight Stitch Feed Dog, Touch Pen, 4 Bobbins, Needle Set HA x1 #11, #14, #16, for knit #11, Quilt Guide, Auxiliary Spool Pin, T-Shape Screwdriver, Ripper, Cleaning Brush, Spool Caps (Large, Medium, Small), Foot Controller, Knee Lifting Lever, Power Cord, Wide Table, Soft Case, Instruction Manual |
| Dimensions (W x H x D) | 445 x 290 x 210 mm (17.5" x 11.4" x 8.27") |
| Arm Size | 11.9" (L) x 4.7" (H) |
| Weight | 14.1 kg / 31.08 lbs |
- Brand: Juki
- Viewed: 30
- Availability: In Stock
$2,500.00
