The Consew 255RBL-25 Long Arm Sewing Machine with Servo Motor contains a variety of features the include, but not limited to: Heavy Duty, Single Needle, Triple Feed, Drop Feed, Needle Feed, and Alternating (Walking) Presser Feet, Lockstitch Machine, Large Bobbin and Vertical Axis Hook, Centra-Lube®, Semi-Automatic Lubrication System, 2 1/2 S.P.I. (10mm) Stitch Length, Reverse Feed and Safety Clutch.
Applications
- For sewing light to heavy-weight fabric, canvas, leather, vinyl, synthetics and various laminated and coated materials
- Designed for stitching such products as auto, boat and furniture upholstery, tarpaulins, covers, awnings, tents, umbrellas, handbags, luggage, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, footwear, foundation garments, orthopedic appliances, etc.
Features
- Centra-Lube® semi-automatic lubrication system
- Automatic hook lubrication
- Oil fed take-up
- Large bobbin and vertical axis hook
- Compound feed, walking foot mechanism assures uniform stitching
- Simple wing nut adjustment permits raising and lowering of the center foot to allow for sewing different thicknesses of material
- Safety clutch prevents the hook from being damaged
- Safety-type handwheel
- Stitch length indicator on outside of machine
- All sizes of cording feet available
- Standard attachments easily installed
- Reverse stitching
- Long Stitch - 21/2 SPI (10mm)
- Large bobbin and vertical axis hook, reverse feed - 25" long arm
- 255RB-3: Large bobbin and vertical axis hook and reverse feed and High-lift
- 255RBL-25: Large bobbin and vertical axis hook, reverse feed - 25" long arm
- 255RBL: Special order, custom made in USA, up to 30" long arm
| Category | Details |
|---|---|
| Number of Needles | 1 (Single) |
| Feeding Mechanism | Walking Foot |
| Workspace | Long Arm |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 2200 |
| Clearance Under Presser Foot | 9/16" (14mm) |
| Stitch Length | 2 1/2 s.p.i. (10mm) |
| Work Space | 25" (640mm) |
| Needle | 135 x 17 |
| Bobbin | Pre-Wound U |
| Bed Size | 7" 28-1/4" (177mm x 718mm) |
| Stitch Type | 301 |
| Needle Bar Stroke | 1 5/16" (33mm) |
| Hook | 15040 |
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder

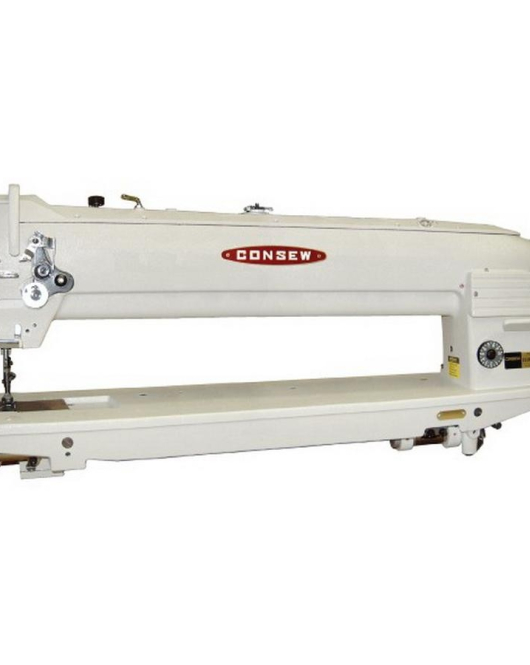

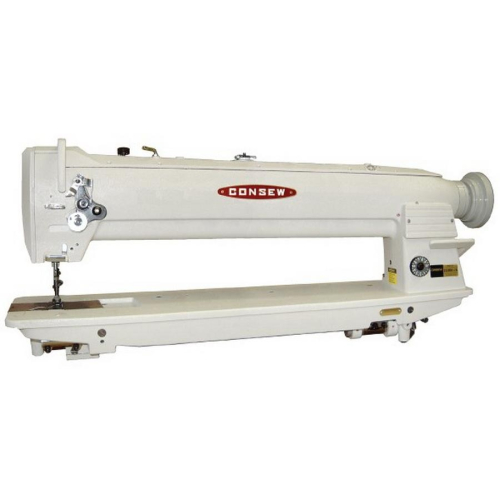

Consew 255RBL-25 Long Arm Lockstitch Machine with Assembled Table and Servo Motor
- Product Code: 255RBL-25
The Consew 255RBL-25 Long Arm Sewing Machine with Servo Motor contains a variety of features the include, but not limited to: Heavy Duty, Single Needle, Triple Feed, Drop Feed, Needle Feed, and Alternating (Walking) Presser Feet, Lockstitch Machine, Large Bobbin and Vertical Axis Hook, Centra-Lube®, Semi-Automatic Lubrication System, 2 1/2 S.P.I. (10mm) Stitch Length, Reverse Feed and Safety Clutch.
Applications
- For sewing light to heavy-weight fabric, canvas, leather, vinyl, synthetics and various laminated and coated materials
- Designed for stitching such products as auto, boat and furniture upholstery, tarpaulins, covers, awnings, tents, umbrellas, handbags, luggage, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, footwear, foundation garments, orthopedic appliances, etc.
Features
- Centra-Lube® semi-automatic lubrication system
- Automatic hook lubrication
- Oil fed take-up
- Large bobbin and vertical axis hook
- Compound feed, walking foot mechanism assures uniform stitching
- Simple wing nut adjustment permits raising and lowering of the center foot to allow for sewing different thicknesses of material
- Safety clutch prevents the hook from being damaged
- Safety-type handwheel
- Stitch length indicator on outside of machine
- All sizes of cording feet available
- Standard attachments easily installed
- Reverse stitching
- Long Stitch - 21/2 SPI (10mm)
- Large bobbin and vertical axis hook, reverse feed - 25" long arm
- 255RB-3: Large bobbin and vertical axis hook and reverse feed and High-lift
- 255RBL-25: Large bobbin and vertical axis hook, reverse feed - 25" long arm
- 255RBL: Special order, custom made in USA, up to 30" long arm
| Category | Details |
|---|---|
| Number of Needles | 1 (Single) |
| Feeding Mechanism | Walking Foot |
| Workspace | Long Arm |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 2200 |
| Clearance Under Presser Foot | 9/16" (14mm) |
| Stitch Length | 2 1/2 s.p.i. (10mm) |
| Work Space | 25" (640mm) |
| Needle | 135 x 17 |
| Bobbin | Pre-Wound U |
| Bed Size | 7" 28-1/4" (177mm x 718mm) |
| Stitch Type | 301 |
| Needle Bar Stroke | 1 5/16" (33mm) |
| Hook | 15040 |
- Brand: consew
- Viewed: 31
- Availability: In Stock
$5,199.00
