HLK-1510 is a Highlead self-developed electronic pattern sewing machine with high accurate digital control system and high efficient direct drive servo motor. Sewing pattern, stitch number and stitch length can be set at discretion within 150mm x 100mm by a programmer (accessory) or by using the USB terminal. It features precise design and reliable driving and is high efficient equipment for bartacking or decoration sewing in bag, trunk, garment industries.
Specifications
| Max Sewing Speed | 2500 r.p.m. (stitch length is 3mm or less) |
| Speed preset | 100-2500 r.p.m. at discretion |
| Stitch length | 0.1 - 12.7 mm |
| Needle bar stroke | 41.2 mm |
| Thread take-up lever stroke | 73 mm |
| Presser foot lift | Outer presser foot (pneumatic) 25 mm Mid presser foot 16 mm |
| Sewing area | 150 mm in X-way, 100 mm in Y-way |
| Needle Size | DP x 17 18# (Standard) |
| Hook | Shuttle hook |
| X-Y Driving mechanism | Interim or continuous switch among stepping motors, racks and guide rails |
| Motor | 220V 550W Servo motor |
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder

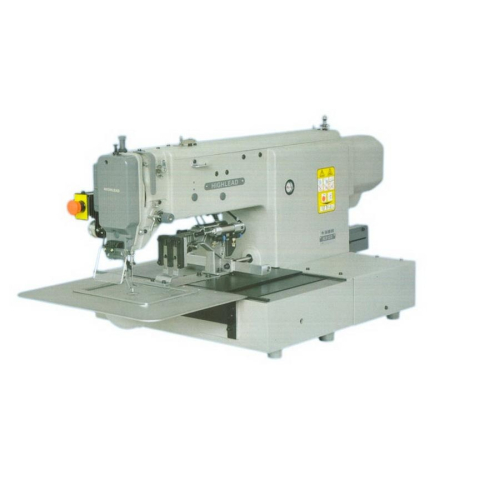

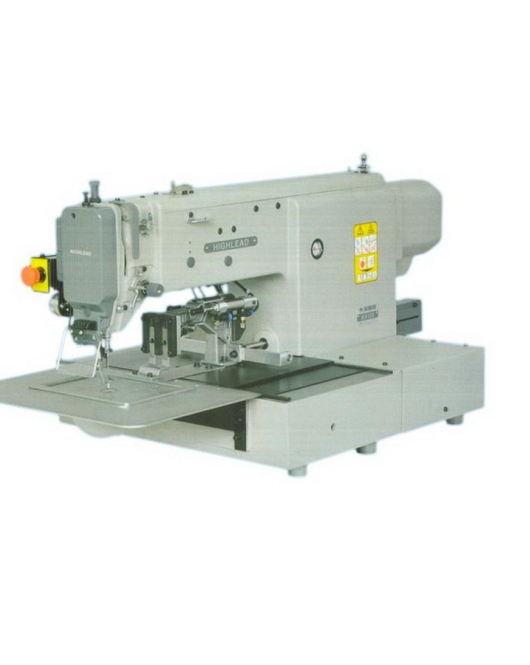

Highlead HLK1510 Industrial Sewing Machine with Assembled Table and Servo Motor
- Product Code: HLK-1510
HLK-1510 is a Highlead self-developed electronic pattern sewing machine with high accurate digital control system and high efficient direct drive servo motor. Sewing pattern, stitch number and stitch length can be set at discretion within 150mm x 100mm by a programmer (accessory) or by using the USB terminal. It features precise design and reliable driving and is high efficient equipment for bartacking or decoration sewing in bag, trunk, garment industries.
Specifications
| Max Sewing Speed | 2500 r.p.m. (stitch length is 3mm or less) |
| Speed preset | 100-2500 r.p.m. at discretion |
| Stitch length | 0.1 - 12.7 mm |
| Needle bar stroke | 41.2 mm |
| Thread take-up lever stroke | 73 mm |
| Presser foot lift | Outer presser foot (pneumatic) 25 mm Mid presser foot 16 mm |
| Sewing area | 150 mm in X-way, 100 mm in Y-way |
| Needle Size | DP x 17 18# (Standard) |
| Hook | Shuttle hook |
| X-Y Driving mechanism | Interim or continuous switch among stepping motors, racks and guide rails |
| Motor | 220V 550W Servo motor |
- Brand: Highlead
- Viewed: 70
- Availability: In Stock
$12,399.00
