One needle heavy duty long cylinder arm (37") walking foot with large barrel shuttle hook and reverse
A 37 inch long arm cylinder bed compound feed lockstitch machine for extra heavy duty work. The Japanese made large shuttle hook and large bobbin capacity offer high efficiency and ease of operation. The bobbin winder is on the top of the head for easy access and the presser foot lift is adjustable up to 20 mm (.8 inches). A specially designed pedestal stand makes sewing and material handling less burdensome. It can be used in the manufacture of such products as golf bags, filters, safety bags, cases, gymnastic mats and similar bulky heavy duty articles.
| Specifications | |
|---|---|
| Cylinder Length | 37 3/4” |
| Presser Foot Lift | 13 mm (hand) / 20 mm (knee lift) |
| Bed Size Diameter | 81 mm |
| Shuttle Hook | KSP-204N |
| Bobbin Winder | Built-in (top mounted) |
| Stitch Length | 0 – 11 mm |
| Needle Bar Stroke | 56 mm |
| Thread Take-Up Lever Stroke | 96 mm |
| Needle Type | DYx3 #26 |
| Maximum Sewing Speed | 800 RPM |
| Lubrication | Manual |
| Note | Speed depends on thread, material and operation |
| Applications | |
| Mesin heavy duty compound feed (bottom feed, needle feed, walking foot) dengan cylinder arm untuk material ekstra tebal. | |
| Feeding system kuat dan stabil untuk menjahit multi-layer material berat dengan hasil jahitan rata dan presisi. | |
| Stitch length hingga 11 mm dengan fitur reverse stitch sebagai standar. | |
| Shuttle hook Jepang ukuran besar dengan kapasitas bobbin besar untuk penggunaan benang tebal (#92 - #277). | |
| Bobbin winder terletak di atas mesin untuk kemudahan penggunaan dan pergantian cepat. | |
| Presser foot heavy duty dengan lift hingga 20 mm untuk berbagai material ekstra tebal. | |
| Sistem walking foot digerakkan penuh, dikombinasikan dengan bottom dan needle feed untuk feeding maksimal. | |
| Cocok untuk: tas, sarung tangan baseball, perlengkapan olahraga, safety bag, tenda, jok, harness, sabuk pengaman, strap, tekstil teknis, upholstery, dan produk kulit heavy duty lainnya. | |
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder

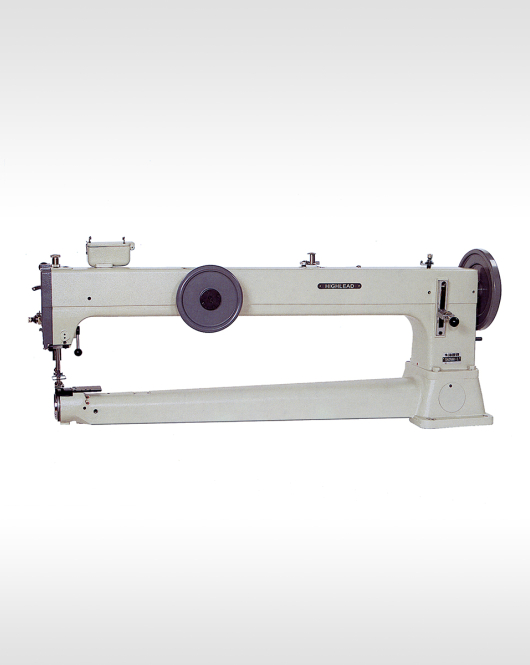

Highlead GA2688-L Industrial Sewing Machine with Assembled Table and Servo Motor
- Product Code: GA2688-L
One needle heavy duty long cylinder arm (37") walking foot with large barrel shuttle hook and reverse
A 37 inch long arm cylinder bed compound feed lockstitch machine for extra heavy duty work. The Japanese made large shuttle hook and large bobbin capacity offer high efficiency and ease of operation. The bobbin winder is on the top of the head for easy access and the presser foot lift is adjustable up to 20 mm (.8 inches). A specially designed pedestal stand makes sewing and material handling less burdensome. It can be used in the manufacture of such products as golf bags, filters, safety bags, cases, gymnastic mats and similar bulky heavy duty articles.
| Specifications | |
|---|---|
| Cylinder Length | 37 3/4” |
| Presser Foot Lift | 13 mm (hand) / 20 mm (knee lift) |
| Bed Size Diameter | 81 mm |
| Shuttle Hook | KSP-204N |
| Bobbin Winder | Built-in (top mounted) |
| Stitch Length | 0 – 11 mm |
| Needle Bar Stroke | 56 mm |
| Thread Take-Up Lever Stroke | 96 mm |
| Needle Type | DYx3 #26 |
| Maximum Sewing Speed | 800 RPM |
| Lubrication | Manual |
| Note | Speed depends on thread, material and operation |
| Applications | |
| Mesin heavy duty compound feed (bottom feed, needle feed, walking foot) dengan cylinder arm untuk material ekstra tebal. | |
| Feeding system kuat dan stabil untuk menjahit multi-layer material berat dengan hasil jahitan rata dan presisi. | |
| Stitch length hingga 11 mm dengan fitur reverse stitch sebagai standar. | |
| Shuttle hook Jepang ukuran besar dengan kapasitas bobbin besar untuk penggunaan benang tebal (#92 - #277). | |
| Bobbin winder terletak di atas mesin untuk kemudahan penggunaan dan pergantian cepat. | |
| Presser foot heavy duty dengan lift hingga 20 mm untuk berbagai material ekstra tebal. | |
| Sistem walking foot digerakkan penuh, dikombinasikan dengan bottom dan needle feed untuk feeding maksimal. | |
| Cocok untuk: tas, sarung tangan baseball, perlengkapan olahraga, safety bag, tenda, jok, harness, sabuk pengaman, strap, tekstil teknis, upholstery, dan produk kulit heavy duty lainnya. | |
- Brand: Highlead
- Viewed: 29
- Availability: In Stock
$5,299.00
